Jack base

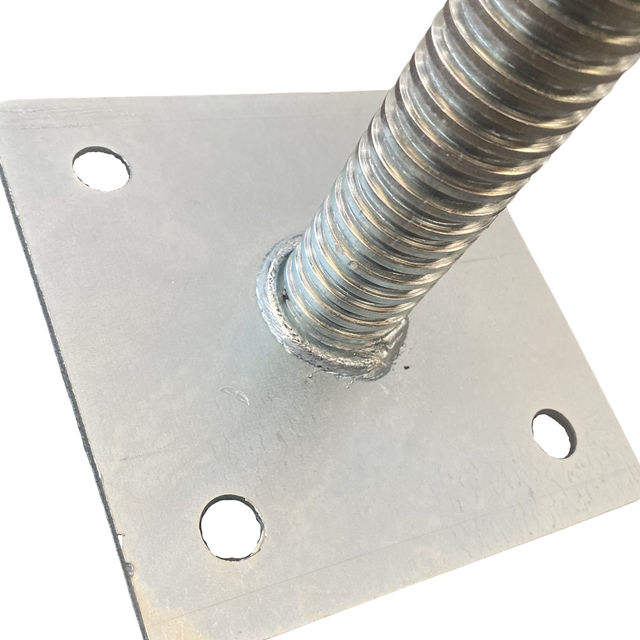

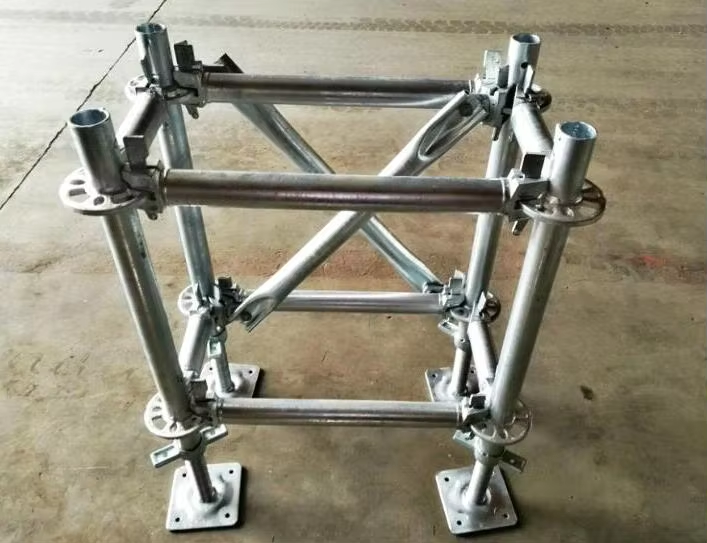

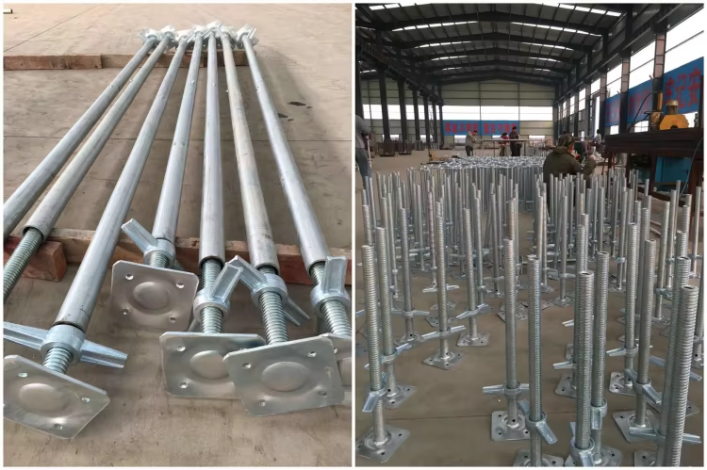

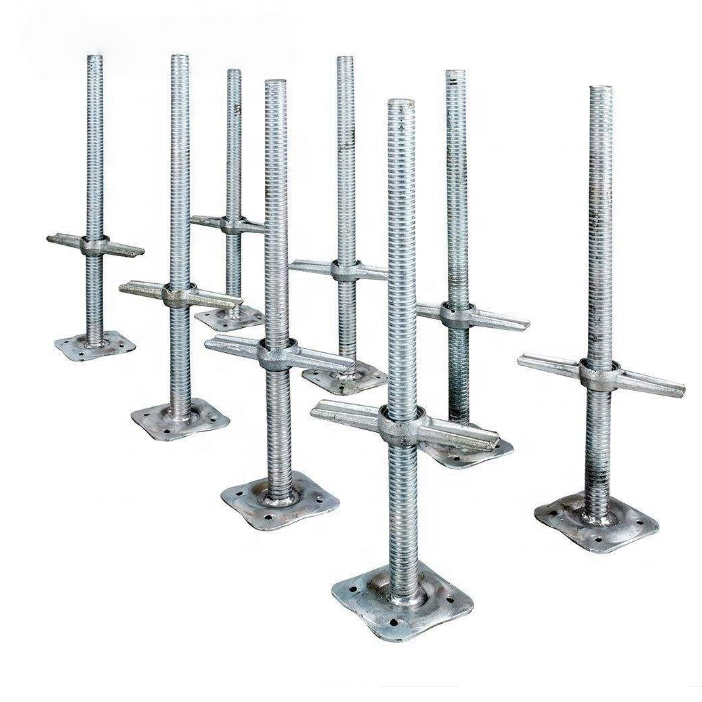

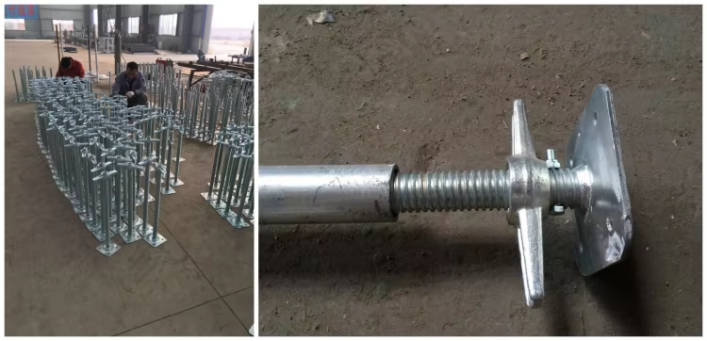

Scaffold Base Jacks are used as the base for scaffolding bays, in which standards are put on. Provide stability by adjusting the level of the bay on uneven ground. Adjustable screw jack base can be used in engineering construction, bridge construction, and used with all kinds of scaffold, play the role of top and bottom support. The surface treatment :hot dip galvanized or electro galvanized . Head base is usually U type,the base plate is usually square or customized by customer.
| Scaffolding Part Type | scaffolding screw jack | Material | Steel |
| Application | construction | Warranty | 3 years |
| After-sale Service | Online Technical Support | Design Style | industrial |
| Project Solution Capability | 3D model design | Place of Origin | Tianjin, China |
| Surface | Electric galvanized,hot dip galvanized | Steel | Welding pipe or seamless pipe |

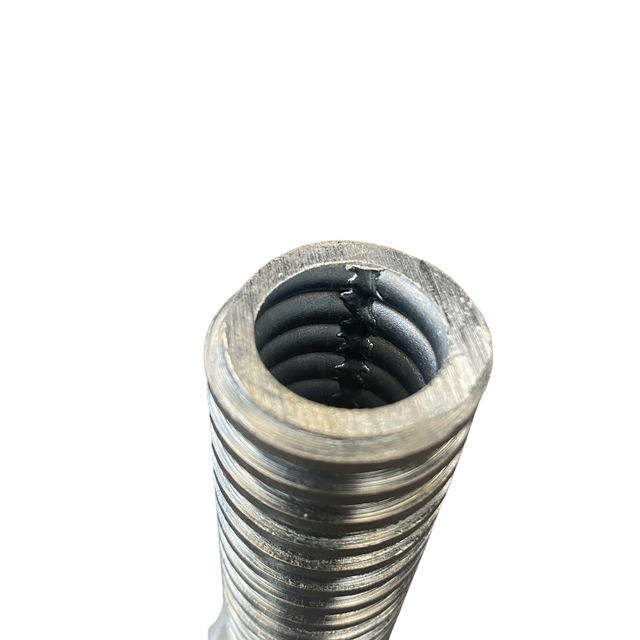

| Type | Solid or hollow scaffolding jack base | keyword | Scaffolding base jack |
| Name | Formwork Jack | Scaffolding Part Type | Scaffolding Screw Jack |

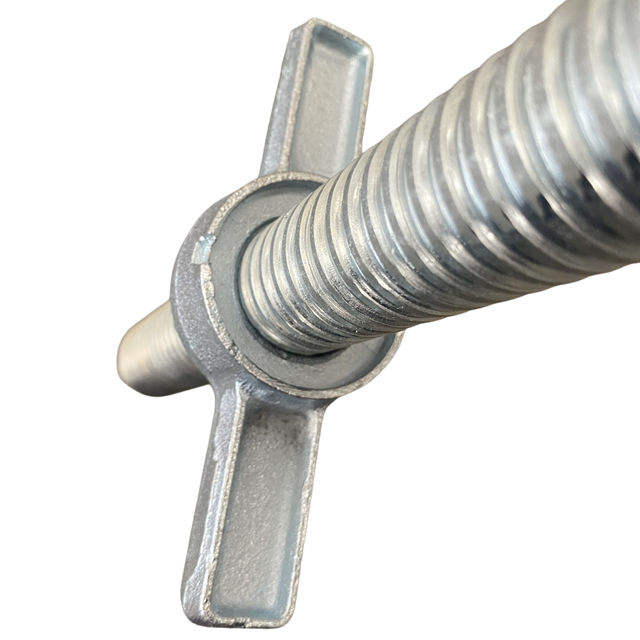

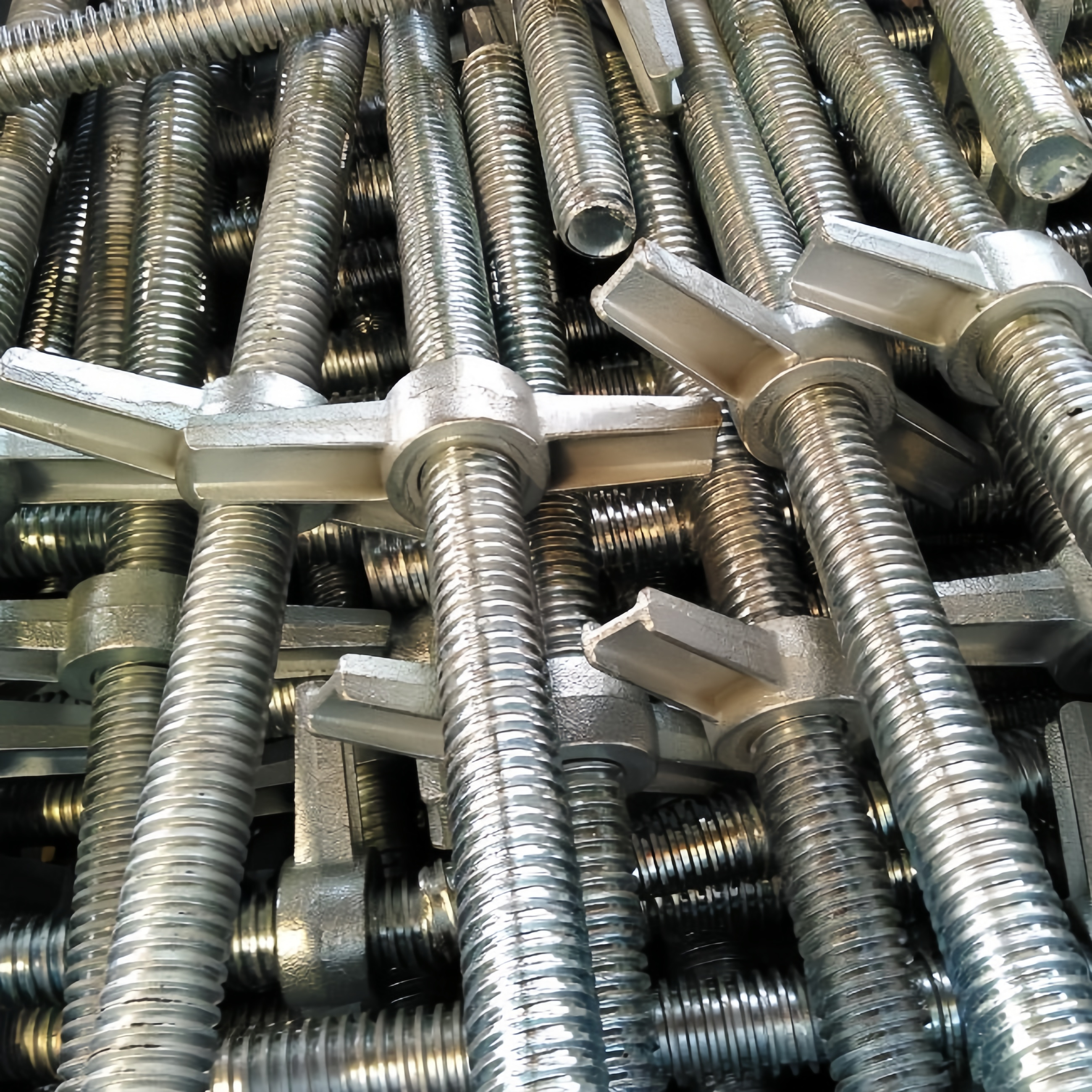

| Length | Customized | Jack nut | Forged or casting, Customization |
| Color | Black,silver,or colorful galvanized | Diameter | 28/30/32/34/35/38/48MM etc |
| Solid Jack Base | Screw Jack （mm） | Base Plate (mm) | Weight (kg) |
| 30x400 | 120x120x4 | 2.61 | |
| 30x600 | 120x120x4 | 3.58 | |
| 32x400 | 120x120x4 | 3.06 | |
| 34x400 | 120x120x4 | 3.25 | |
| 34x600 | 120x120x4 | 4.51 | |
| Hollow Jack Base | 38x4x600 | 150x150x5 | 3.39 |
| 38x4x660 | 150x150x6 | 3.77 | |
| 38x4x760 | 150x150x5 | 3.93 | |
| 48x4x600 | 150x150x6 | 4.51 | |
| 48x4x900 | 150x150x6 | 5.97 | |
| Solid U Head Jack | 30x400 | 150x150x50x4 | 3.35 |
| 30x600 | 150x120x50x4 | 4.08 | |
| 32x600 | 120x120x50x4 | 3.28 | |
| 34x400 | 105x100x50x4 | 4.55 | |
| 34x600 | 150x120x50x4 | 5.01 | |
| Hollow U Head Jack | 38x4x600 | 150x150x50x5 | 3.99 |
| 38x4x660 | 170x150x80x6 | 5.04 | |
| 38x4x700 | 165x150x50x5 | 4.61 | |
| 48x4x600 | 150x150x50x6 | 5.23 | |
| 48x4x900 | 200x200x50x8 | 8.68 |
