Construction Adjustable Scaffolding Steel Prop Factory with cheaper price

Name: Construction Adjustable Scaffolding Steel Prop Factory with cheaper price
Brand: SHENGTENG STEEL
SKU: steelprop-01
Availability: InStock
Rating: 5 (1 reviews)

No.steelprop-01

Steel Props
Scaffolding Steel Prop is an essential component in construction projects, providing support and stability to structures during the construction process. Our Scaffolding Steel Prop range is designed to meet the highest industry standards, ensuring safety and reliability on every job site.
The Scaffolding Steel Prop is made from high-quality steel, offering exceptional strength and durability. It is designed to withstand heavy loads and provide reliable support for various construction applications. The adjustable height feature allows for flexibility, making it suitable for different project requirements.

Double ear nut:

470G、520G、700G

Cup nut:

12CM

GET A QUOTE

Description

Q235 Galvanized Adjustable Steel Heavy Duty Prop Middle East Prop Concrete Construction Support Hot Dip Galvanized steel prop

PRODUCT SPECIFICATIONS

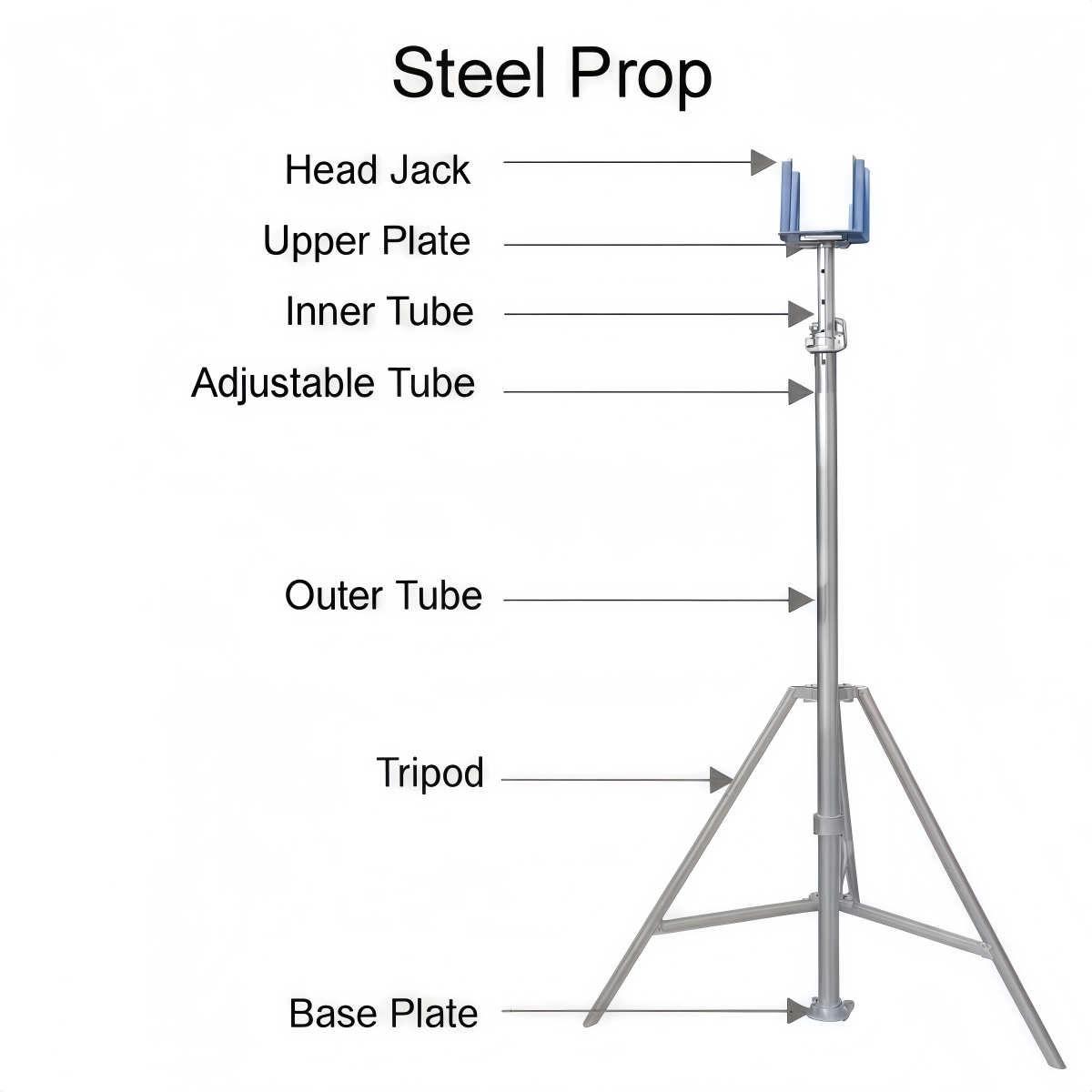

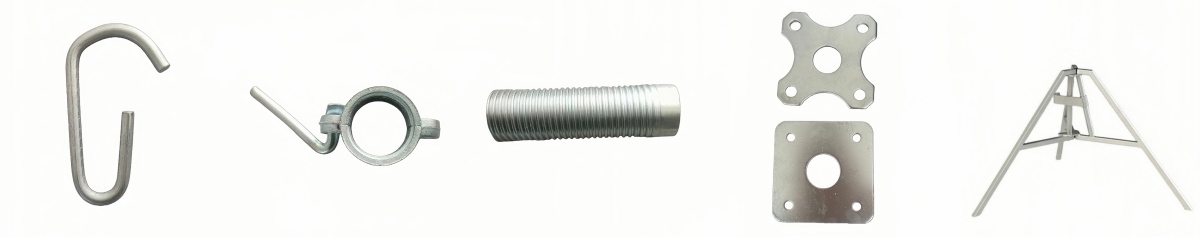

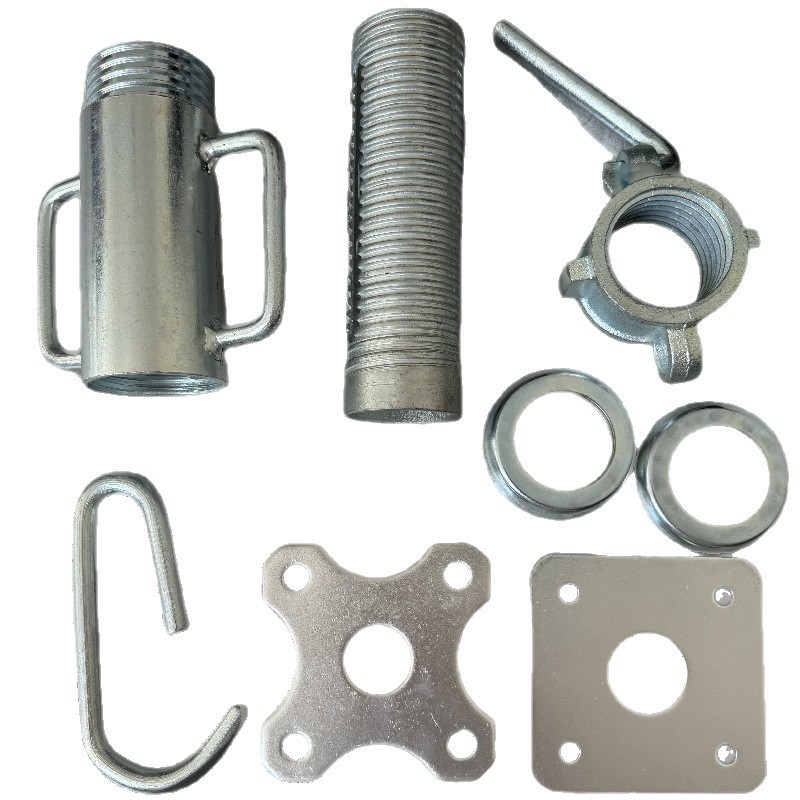

A complete set of adjustable jack post shoring prop consists of an inner tube, an outer tube, a prop nut, a Jack and a Base plate.

Name	Adjustable Scaffolding Acro Steel Prop
Size	out diameter:48mm 56mm 60mm, inner diameter:40mm,48mm. thickness:1.4-3.5mm.
Length	1.6m - 6m or CUSTOMIZED
Surface	pre galvanized ,powder coated (red,blue,orange or customize), hot dip galvanized, painted
Top/Base Plate	Flower / Square
Pin Style	G Pin / Line Pin / Wire rod Pin
Nut and thread	Cup type or Double ear type
Loading quantity	1500-2000pcs/Container.
Materials	Q235B Steel Nut:QT450-10 or 20#.
Model	Middle east or German prop, Italian prop, Spanish prop, or customized

HEAVY DUTY PROP
MIN Length	MAX Length	INTERNAL TUBE	EXTERNAL TUBE
1.8M	3.2M	48MMX2.0MM	60MMX2.0MM
2.1M	3.4M	48MMX2.0MM	60MMX2.0MM
2.2M	4.0M	48MMX2.0MM	60MMX2.0MM
2.4M	3.9M	48MMX2.0MM	60MMX2.0MM
3.5M	4.0M	48MMX2.0MM	60MMX2.0MM
3.0M	5.0M	48MMX3.5MM	60MMX3.5MM
LIGHT DUTY PROP
MIN Length	MAX Length	INTERNAL TUBE	EXTERNAL TUBE
1.6M	3.0M	40MMX2.0MM	48MMX2.0MM
1.6M	3.0M	48MMX2.0MM	56MMX2.0MM
1.8M	3.5M	40MMX2.0MM	48MMX2.0MM
1.8M	3.5M	48MMX2.0MM	56MMX2.0MM
2.0M	3.5M	40MMX2.0MM	48MMX2.0MM
2.0M	3.5M	48MMX3.5MM	56MMX2.0MM

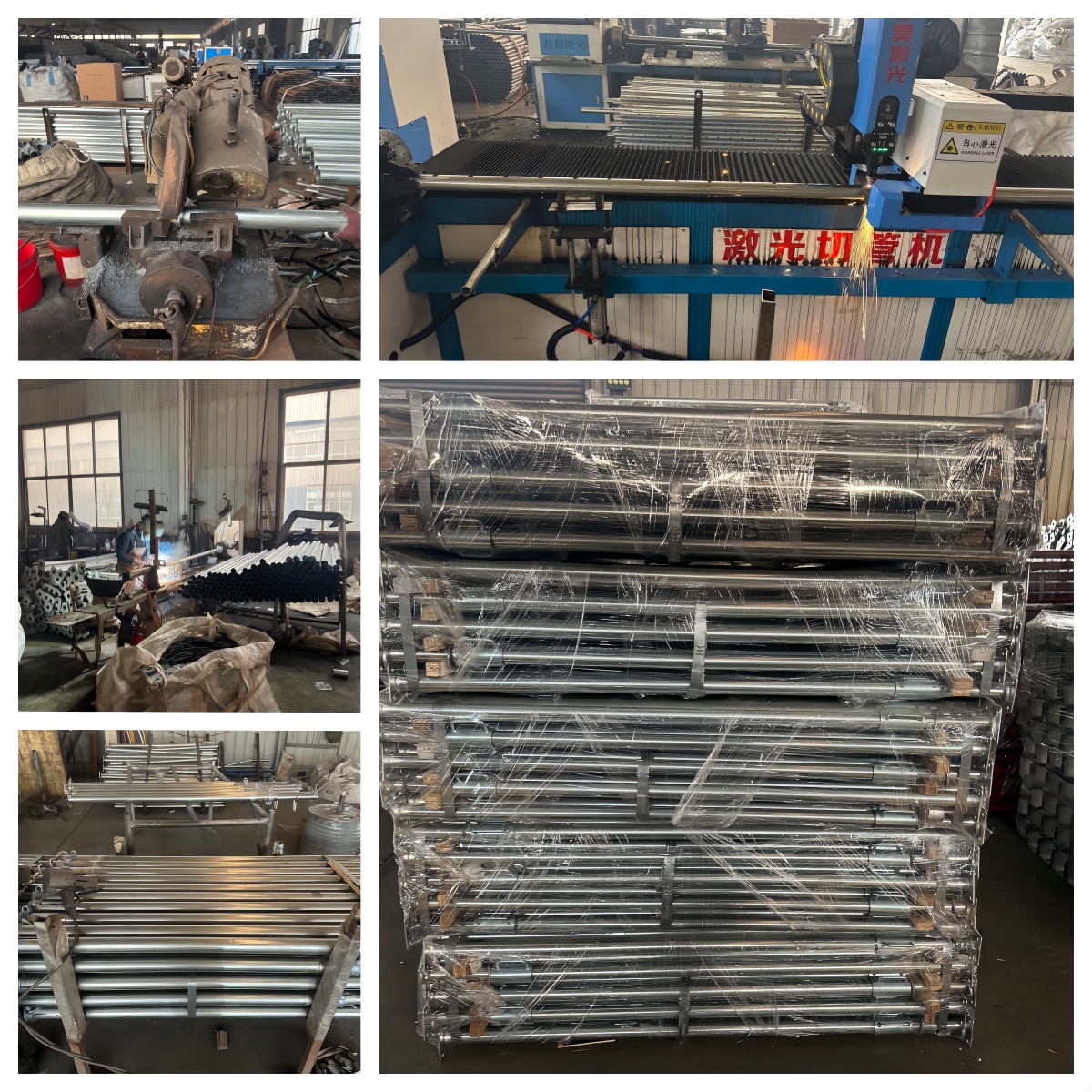

PROCESSING SHOW

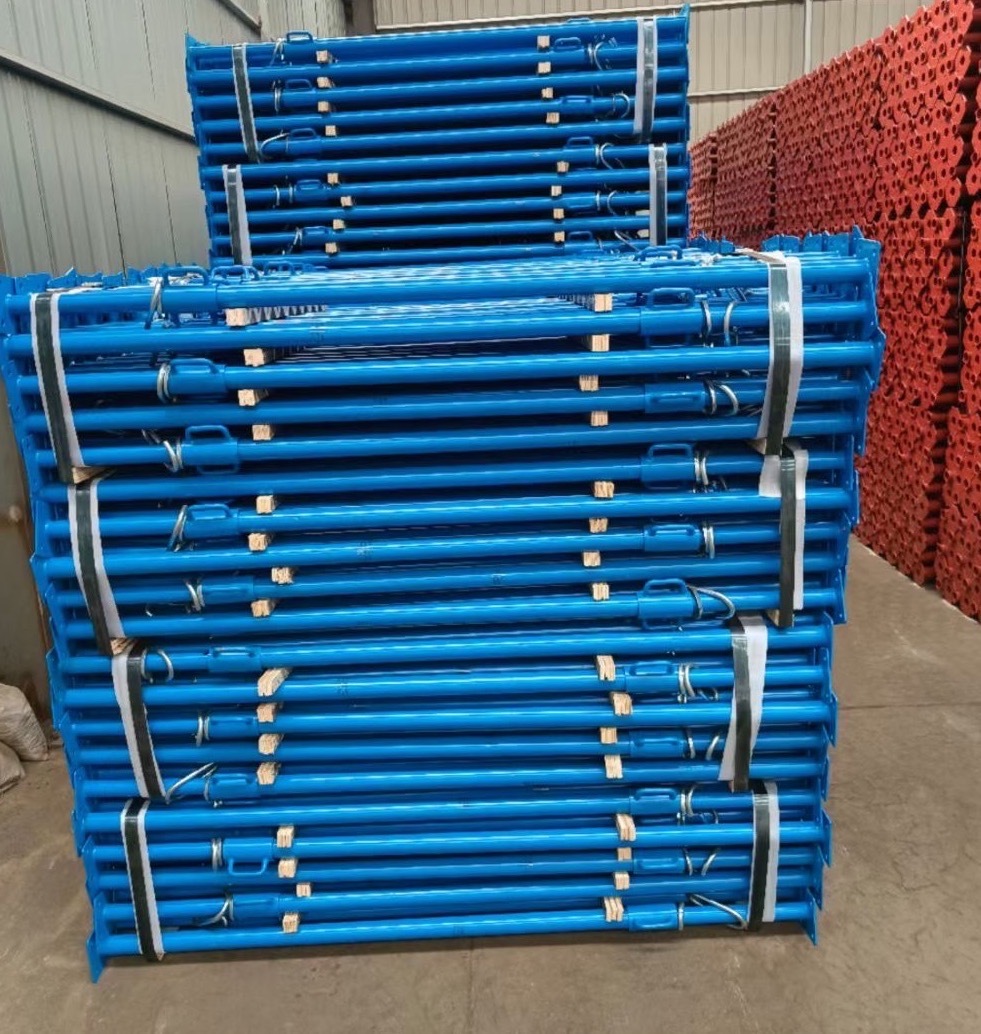

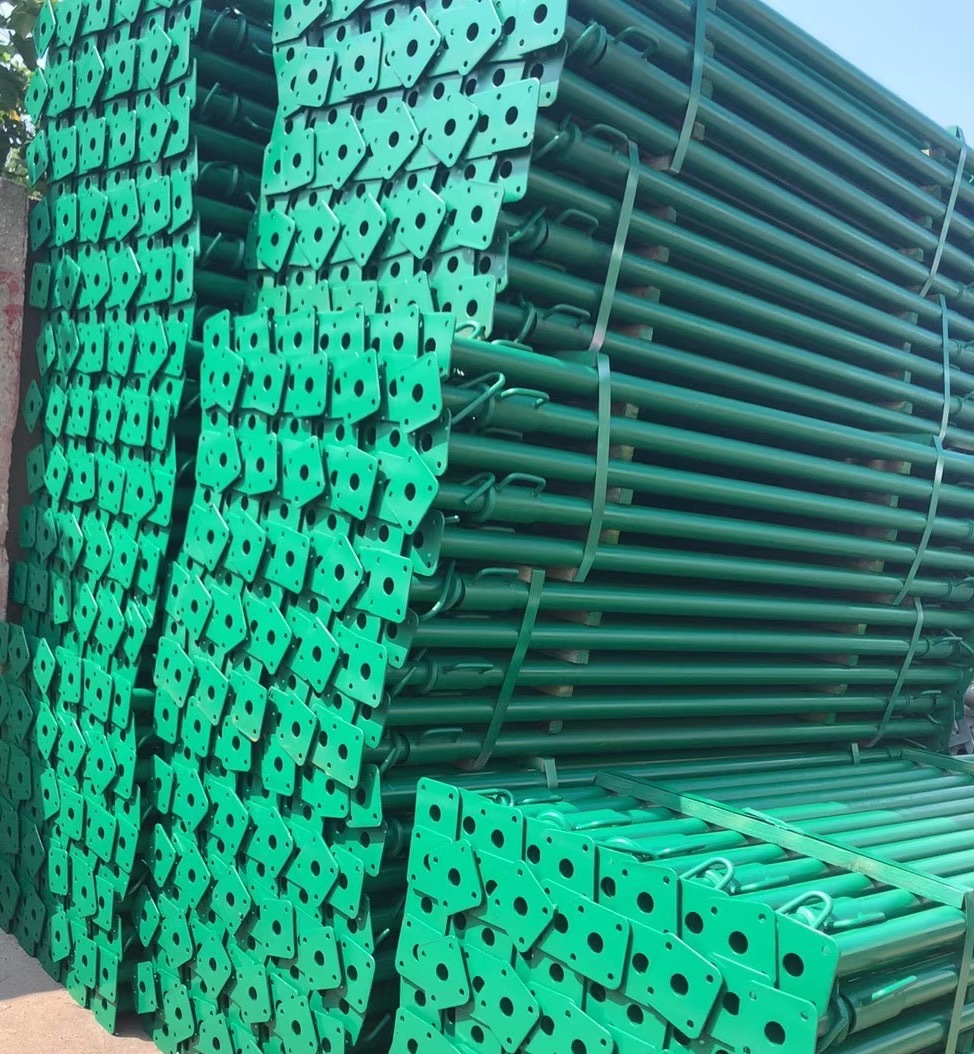

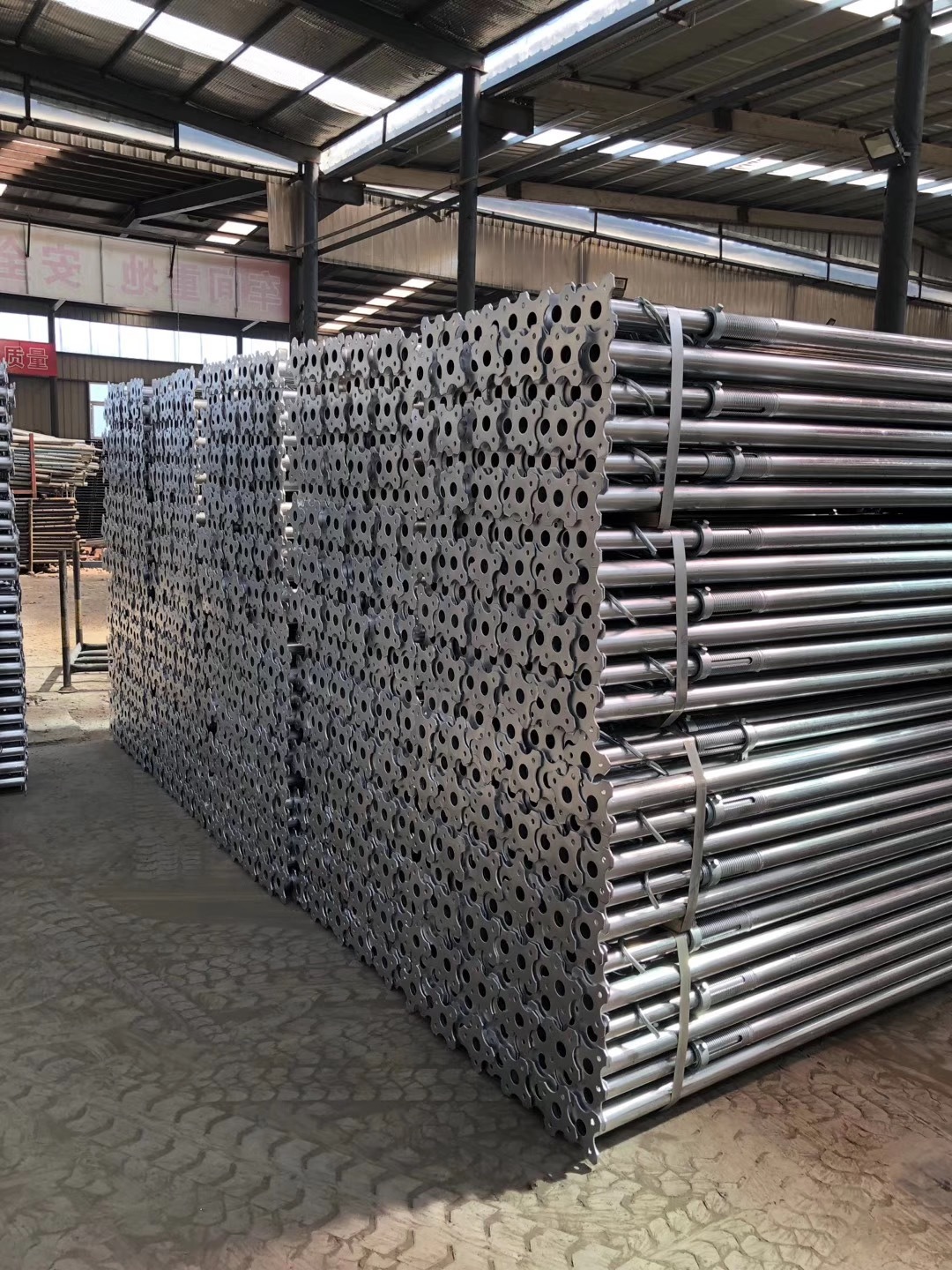

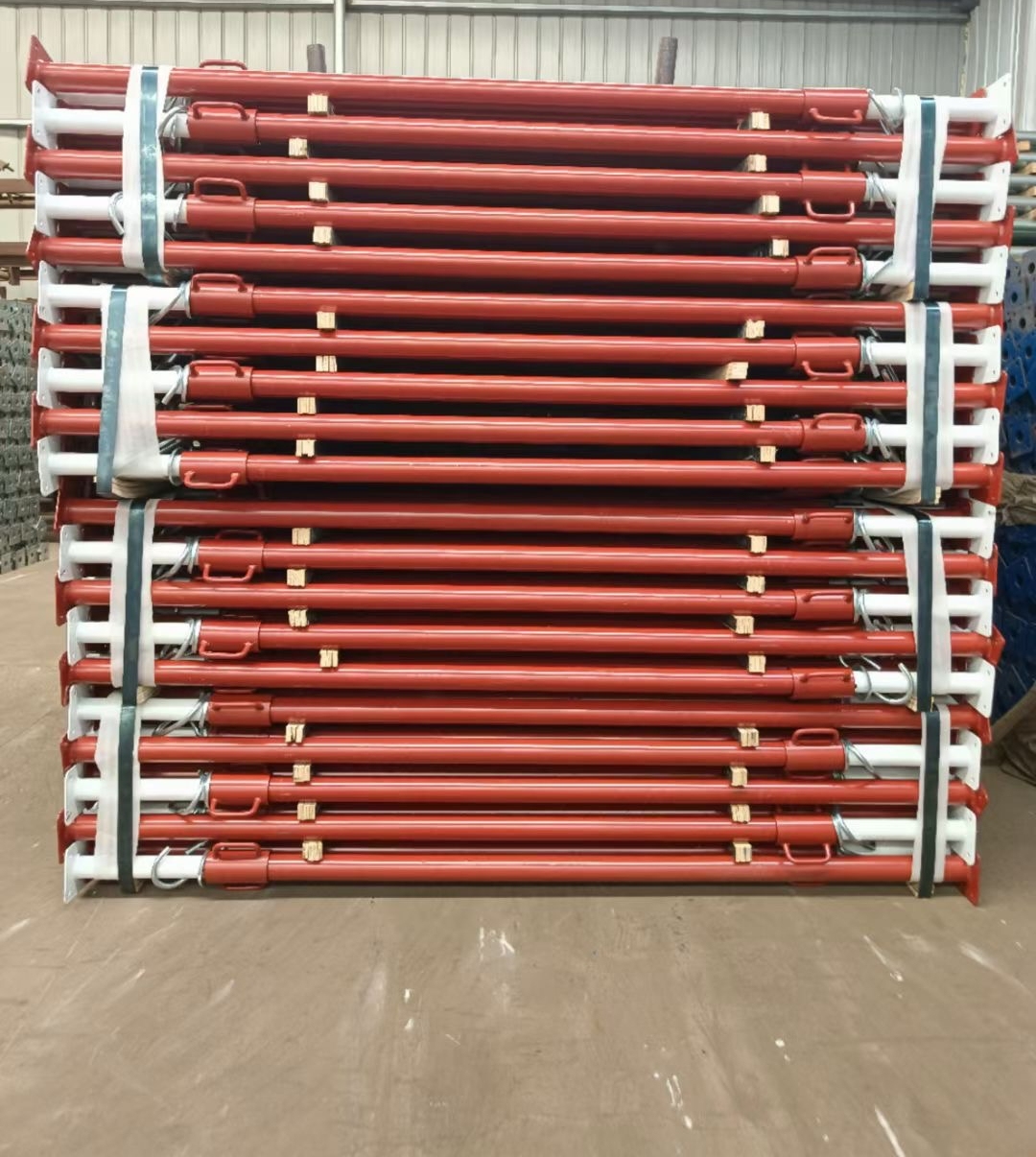

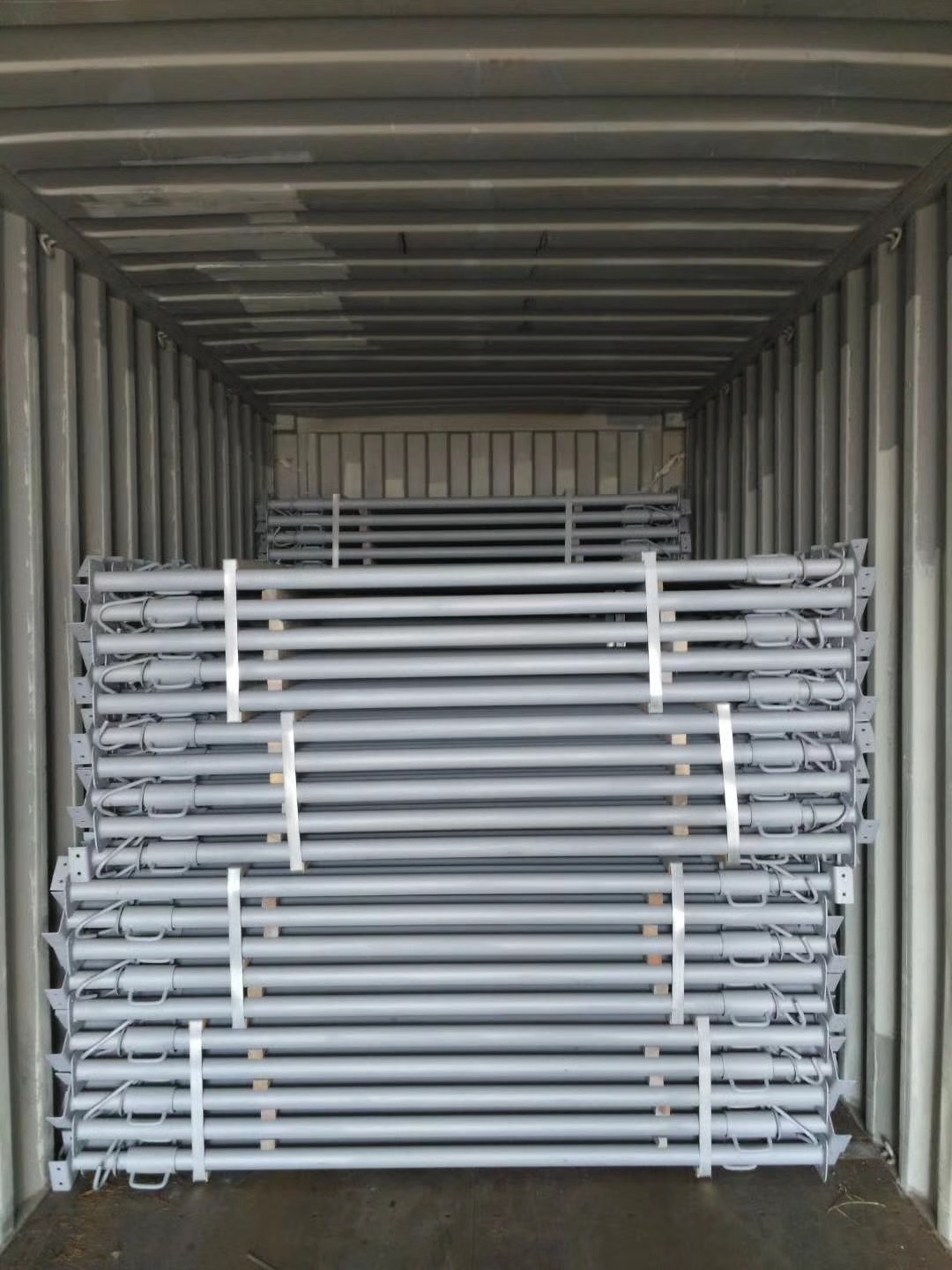

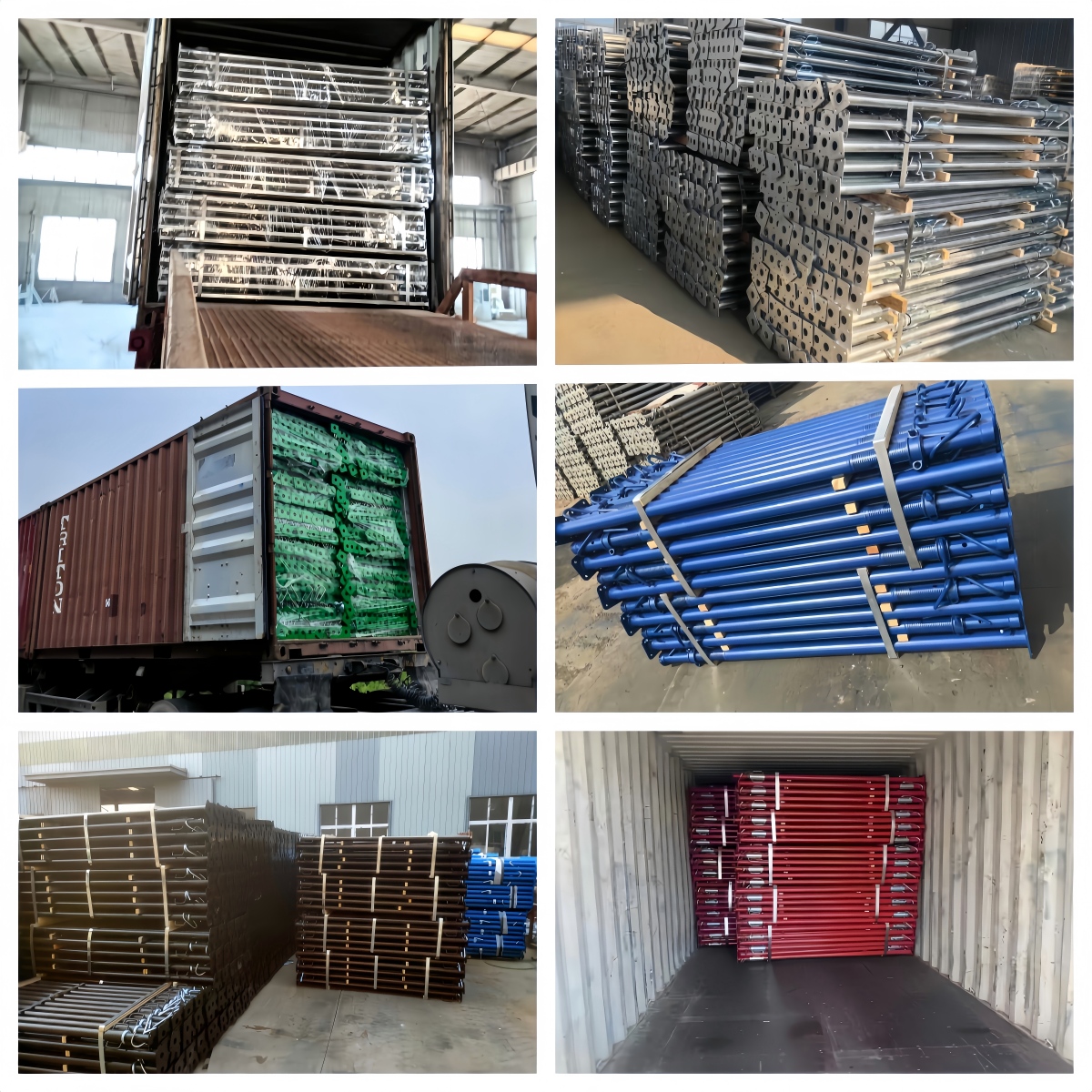

PACKING AND SHIPPING

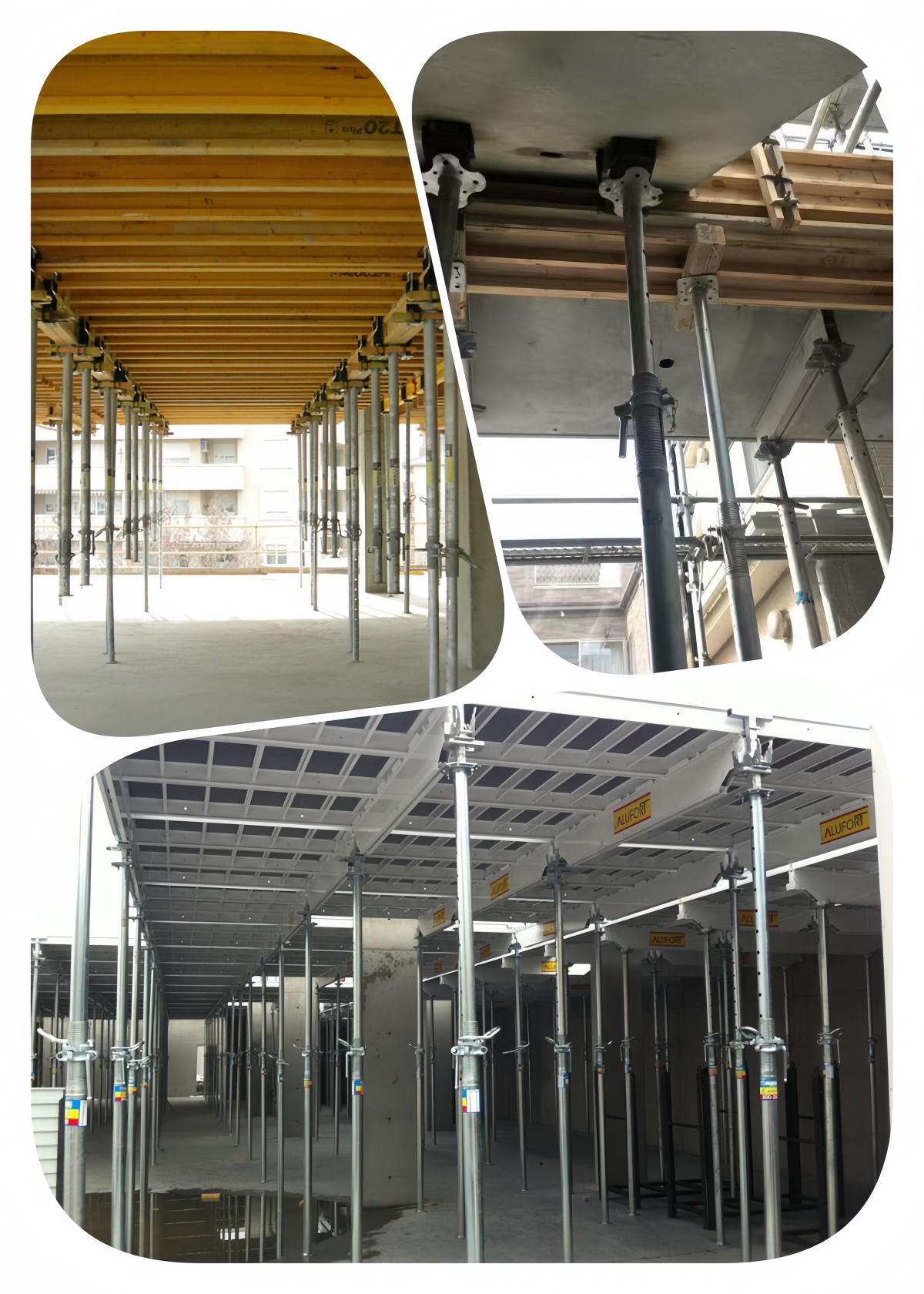

APPLICATION
