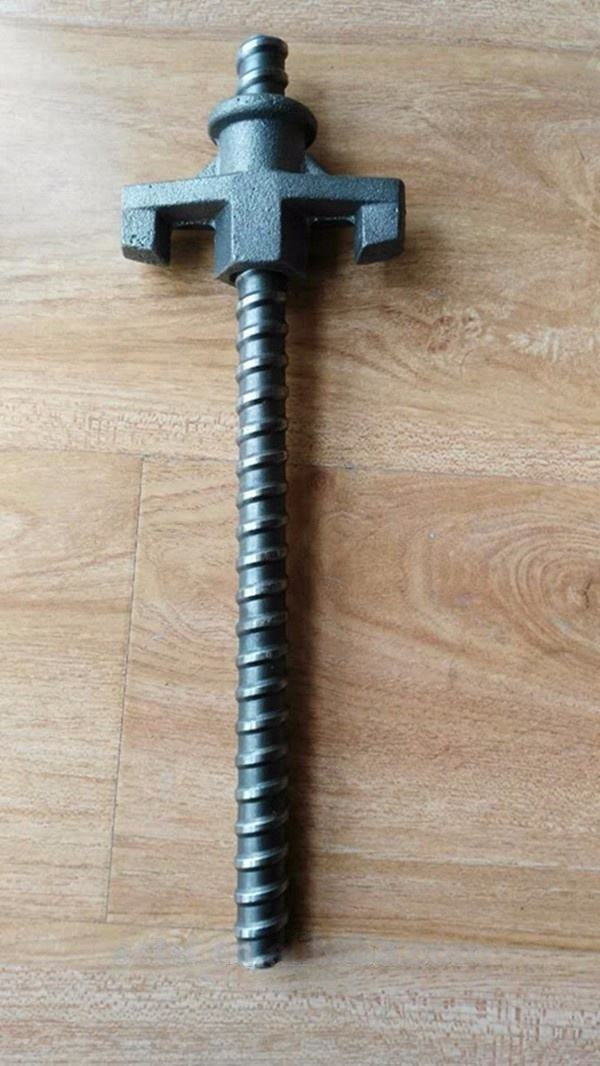

Formwork Accessories Building Material Tie Rod Water Stooper for sale

Name: Formwork Accessories Building Material Tie Rod Water Stooper for sale
Brand: SHENGTENG STEEL
SKU: tie rod-01
Availability: InStock
Rating: 5 (1 reviews)

No.tie rod-01

It is high quality construction formwork fastner and used in many large construction projects,Such as High rise building,Bridge,Tunnel, Nuclear power projects.

1.Thread pitch 6.35 mm or 10 mm. Different screws are used for different tightening nuts.

2.Thread pitch 6.35 mm or 10 mm. Different screws are used for different tightening nuts.

3.Free samples are available for your testing.

GET A QUOTE

Description

DESCRIPTION

PRODUCTS	FORMWORK TIE ROD
MATERIALS	Q235, Q345, 45#
DIAMETER	D15/17mm ,D10/12mm and D20/22mm
Thread pitch	6.35 mm or 10 mm
Color	gold/silver/white/black
Length	1.0/1.2/1.5/2.0/3.0/6.0or other requirement
Production process	hot rolled /cold rolled
Bearing Load	90-260KN

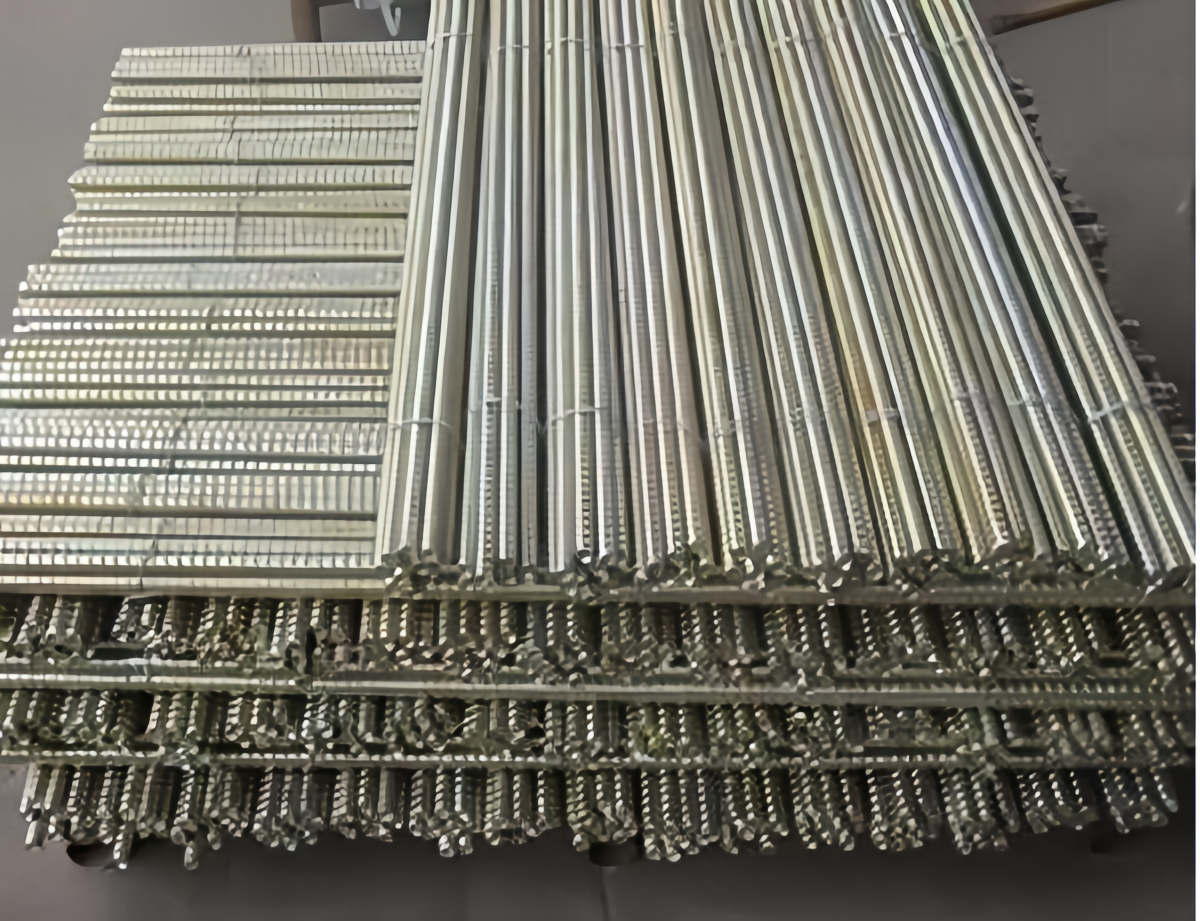

Packing	Bundles

Hot Sale Construction Casting Formwork Tie Rod/Tie Nut/Anchor Nut

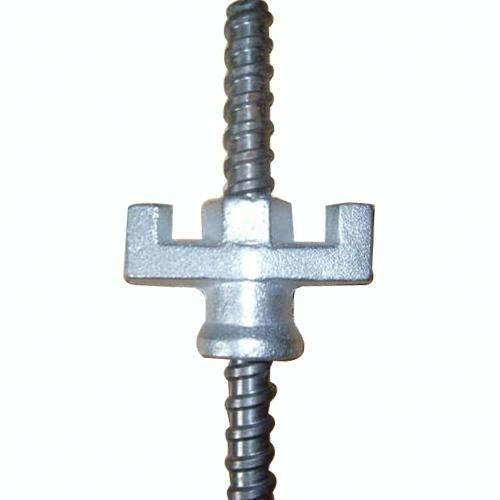

The Formwork Tie Rod system components include the Tie Rod, Wing Nut, Tie Nut, Anchor Nut, Water Barrier/Water Stop, Washer Plate/Waller Plate, Steel Cone, Plastic Tube and Cone and some European countries also asked for the Flupp Plug ( Rubber Stop). Wing nuts and Tie rods as a whole facility are used widely in formwork construction.

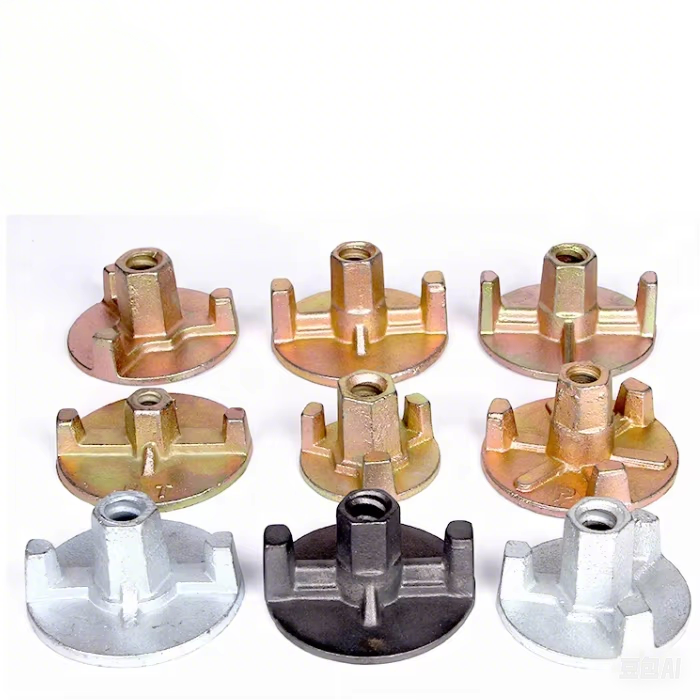

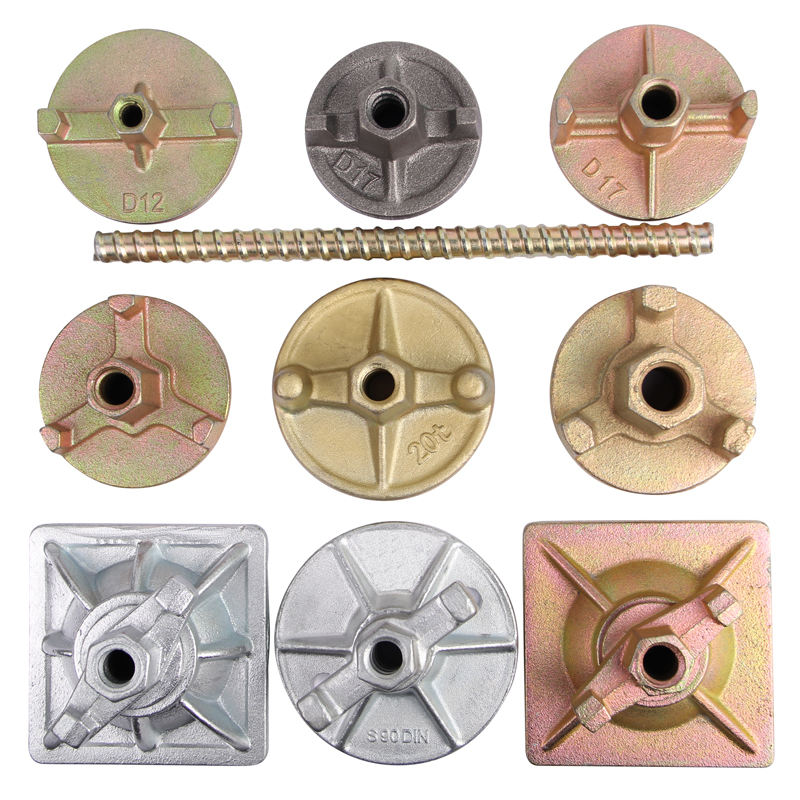

Tie Nut: There are single wing nut, butterfly wing nut, two anchor wing nut, three anchor wing nut, combination wing Nut. Because of this structure, wing nuts can be easily tightened and loosened by hand without any tools. Wing nuts have casting and forging types by processing technology , common thread size is 17mm/20mmon thread size is 17mm/20mm.

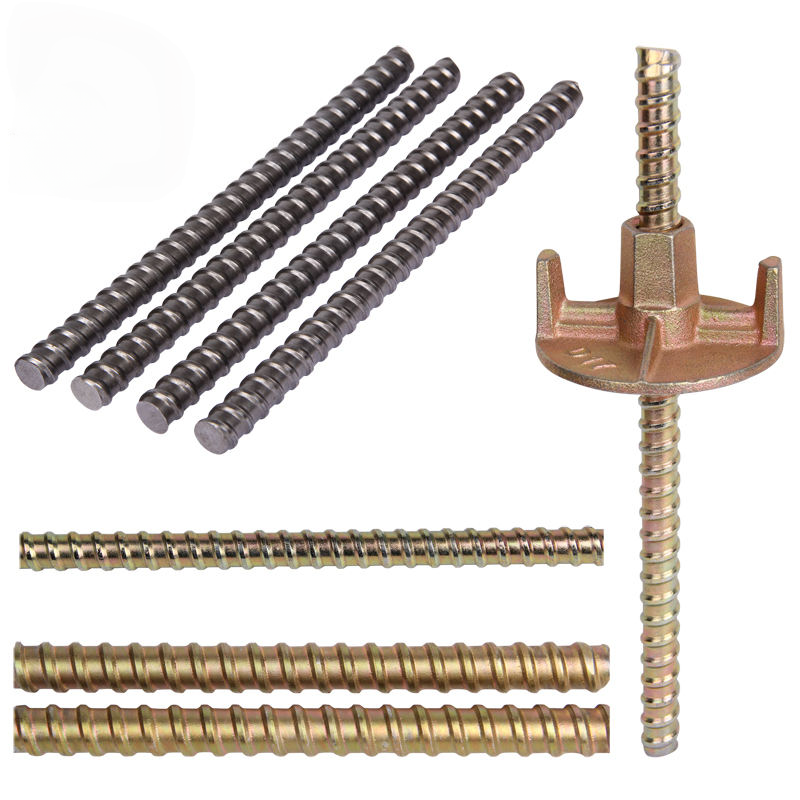

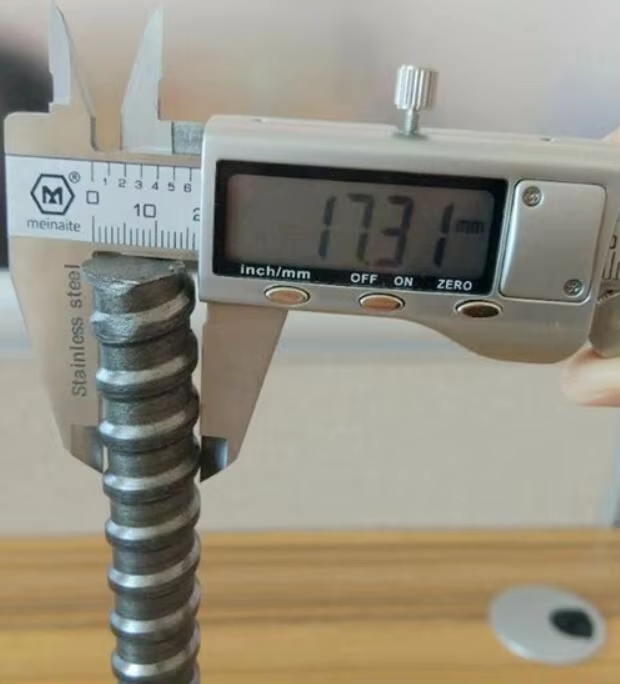

Tie Rod: The Material of Tie Rod usually use Q235 carbon steel, 45# steel, surface finished as galvanized, zinc-plated and natural color. The working load from 40kn to 70kn. And we also offer Hot Rolled Tie Bar, which with the breaking load of 180kn.
Washer Plate: normally we offer 120x120x10mm, 120x120x8mm, 120x110x10mm, 100x100x10mm and other sizes can be made accordind to demand.
All the Nuts, Tie Rod, Washer Plate size and feature can be OEM.

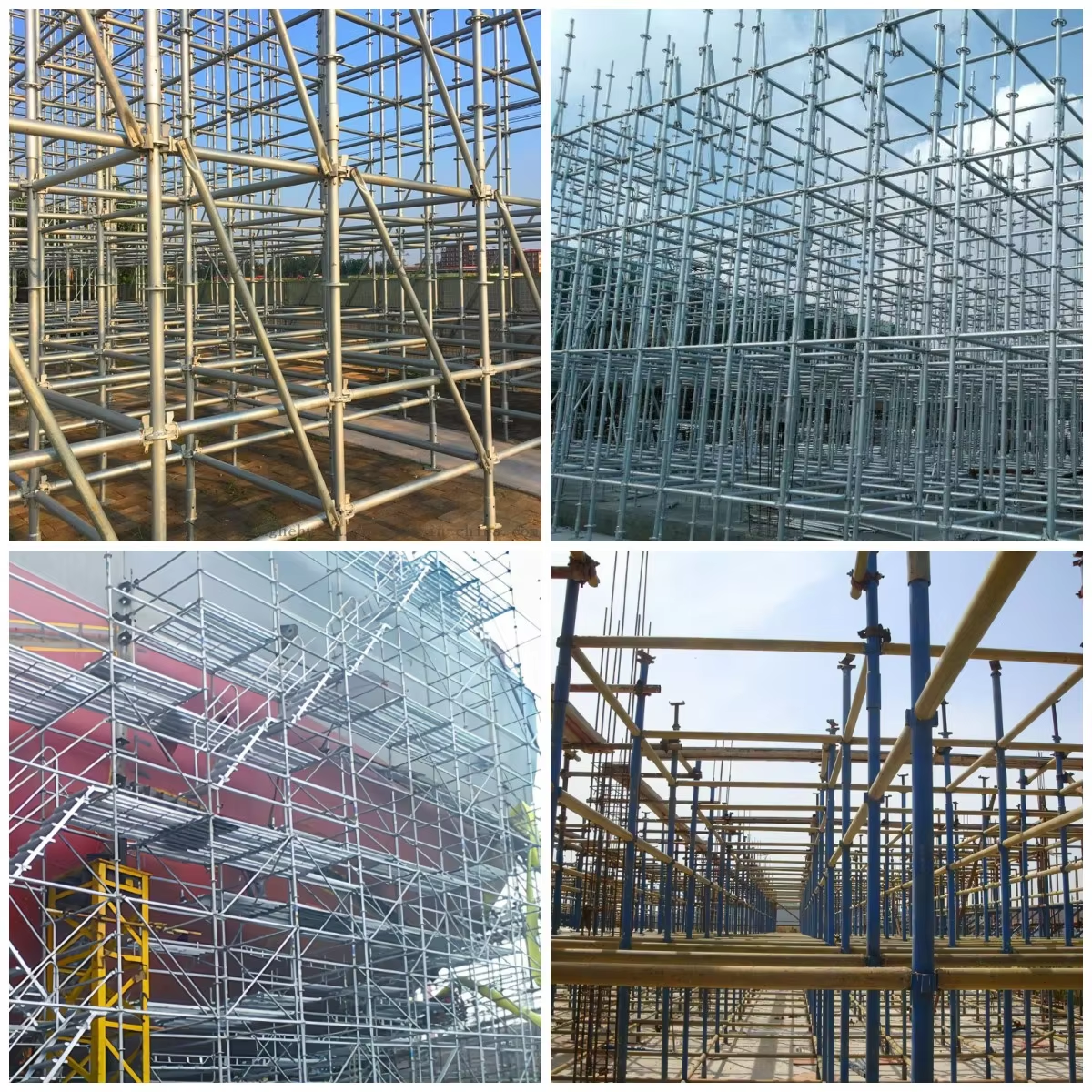

Application

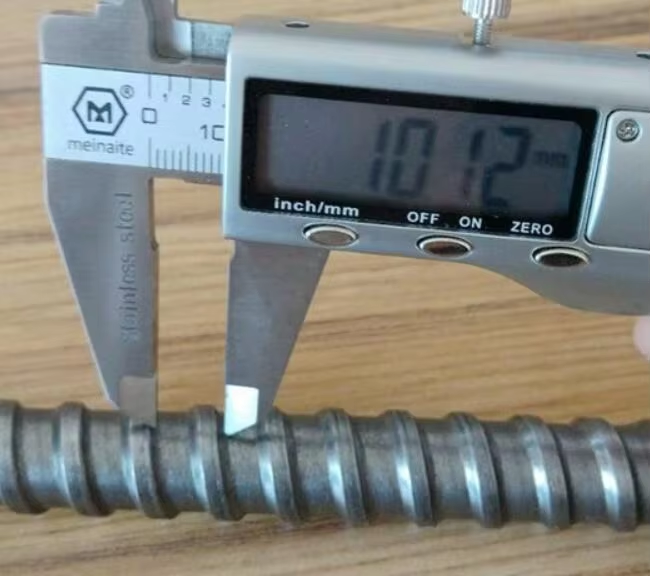

INSPECTION

PACKING

Packing & Delivery
