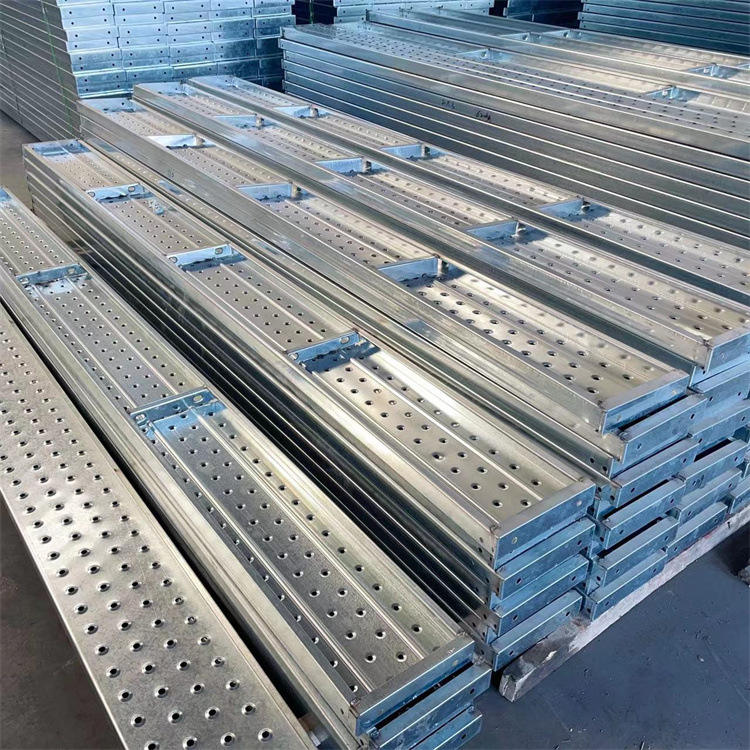

Features of Scaffold Plank 1. 100% Q235 steel, Scaffolding Plank Used for Construction is strong and durable.
2. Galvanized surface, Scaffolding Plank Used for Construction is rust-proof.
3. Scientific design, Scaffolding Plank Used for Construction is easy assembly and disassembly.

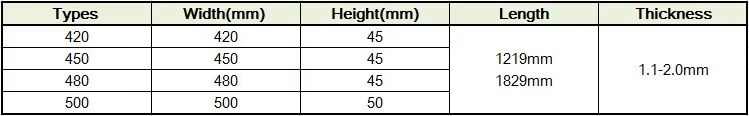

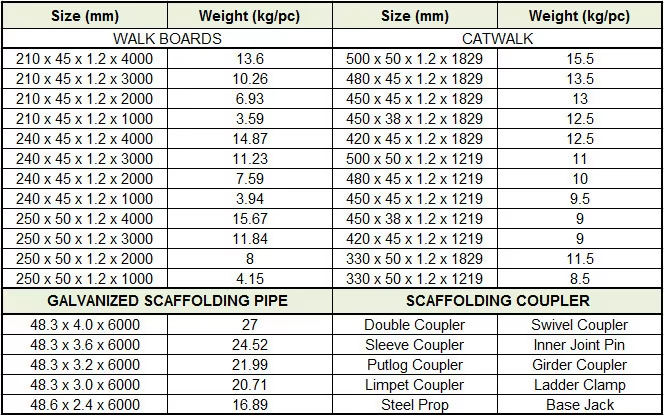

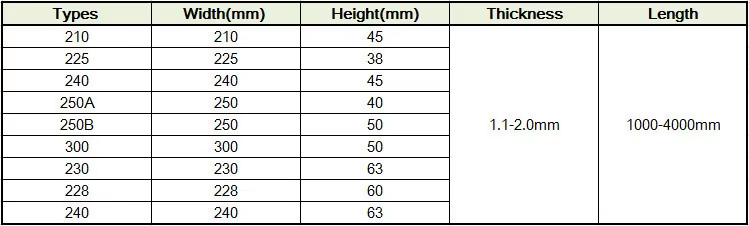

Specifications of Scaffold Plank
| Type |
Scaffolding Plank Used For Construction |
| Weight |
Above 1kg |
| Surface treatment |
Galvanized |
| Color |
Silver |
| Steel plank |
Steel plank with hook/catwalk |
| Size/mm |
Length/mm |
Width/mm |
Height/mm |
Kg/pc |
Size/mm |
Length/mm |
Width/mm |
Height/mm |
Kg/pc |
| 210*45*1.2 |
4000 |
210 |
45 |
13.6 |
500*50*1.2 |
1829 |
500 |
50 |
15.5 |
| 210*45*1.2 |
3000 |
210 |
45 |
10.26 |
500*50*1.2 |
1219 |
500 |
50 |
12.5 |
| 210*45*1.2 |
2000 |
210 |
45 |
6.93 |
480*45*1.2 |
1829 |
480 |
45 |
13.5 |
| 210*45*1.2 |
1000 |
210 |
45 |
3.59 |
480*45*1.2 |
1219 |
480 |
45 |
11 |
| 240*45*1.2 |
4000 |
240 |
45 |
14.87 |
450*45*1.2 |
1829 |
450 |
45 |
13 |
| 240*45*1.2 |
3000 |
240 |
45 |
11.23 |
450*45*1.2 |
1219 |
450 |
45 |
10 |
| 240*45*1.2 |
2000 |
240 |
45 |
7.59 |
450*38*1.2 |
1829 |
450 |
38 |
12.5 |
| 240*45*1.2 |
1000 |
240 |
45 |
3.94 |
450*38*1.2 |
1219 |
450 |
38 |
12.5 |
| 250*50*1.2 |
4000 |
250 |
50 |
15.67 |
420*45*1.2 |
1829 |
420 |
45 |
12.5 |
| 250*50*1.2 |
3000 |
250 |
50 |
11.84 |
420*45*1.2 |
1219 |
420 |
45 |
9 |
| 250*50*1.2 |
2000 |
250 |
50 |
8 |
330*50*1.2 |
1829 |
330 |
50 |
11.5 |
| 250*50*1.2 |
1000 |
250 |
50 |
4.15 |
330*50*1.2 |
1219 |
330 |
50 |
8.5 |

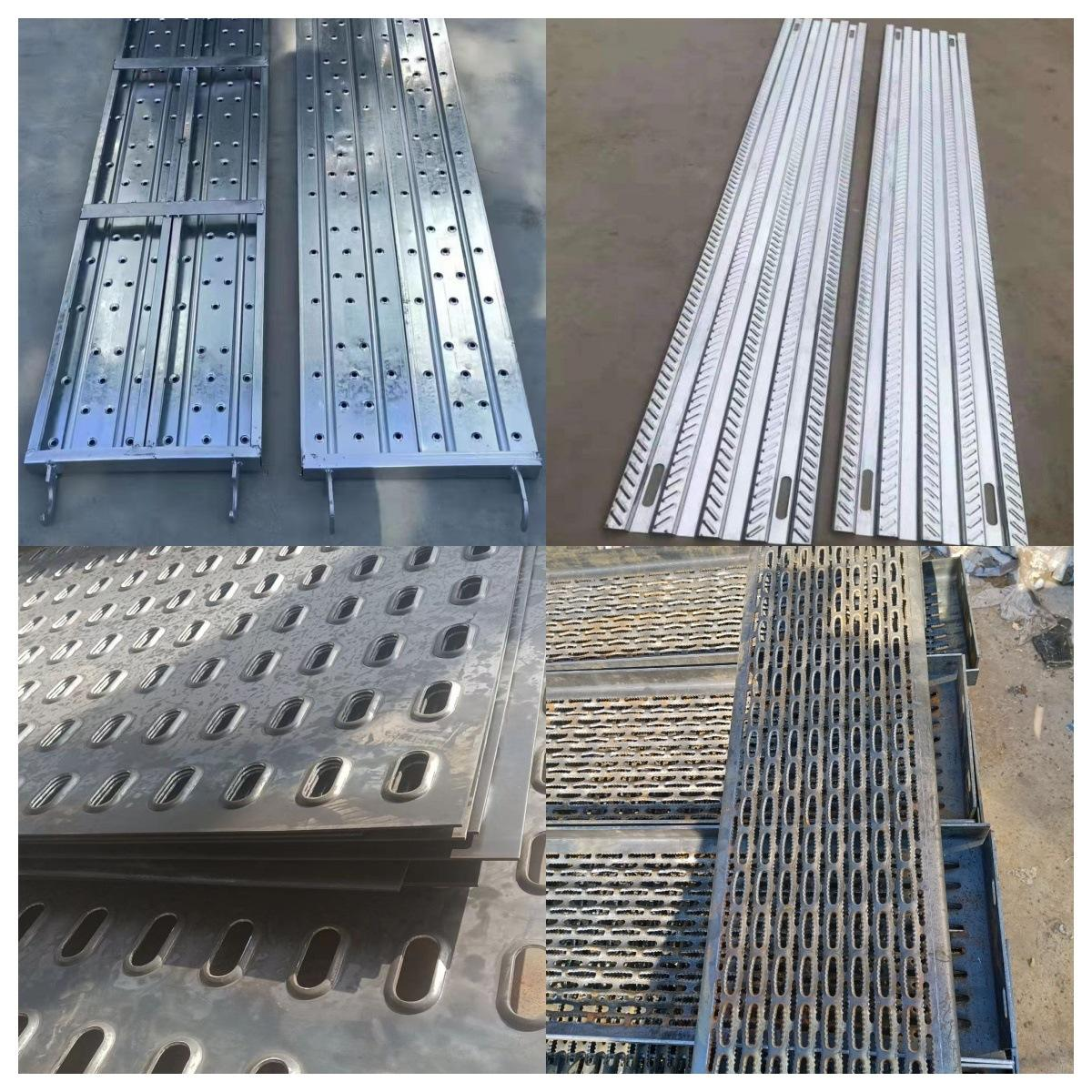

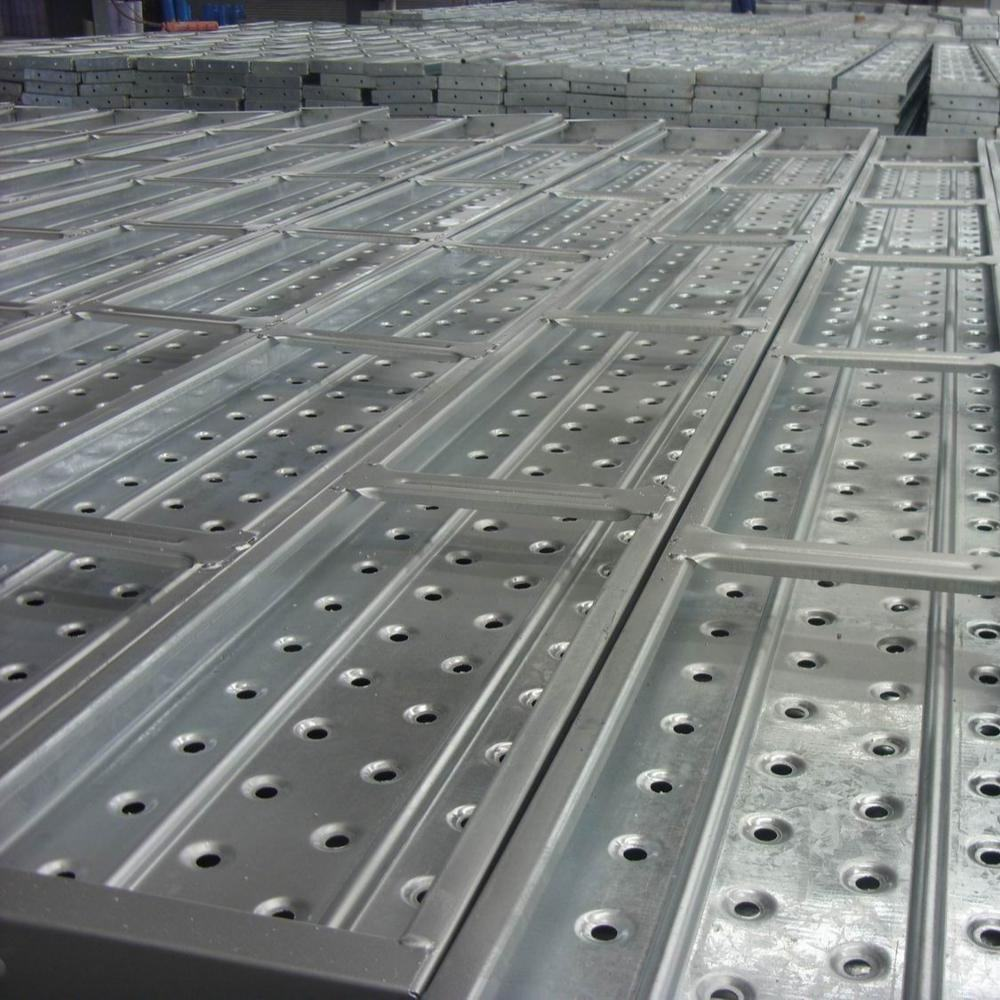

Catwalk Surface:
Pre-galvanized, Hot Dipped Galvanized, Black
Material: GB/T 700: Q195-Q235
Standard: EN1004:2004, BS EN 12811-1:2003, AS 1577
Certificate: ISO, SGS, BV, TUV

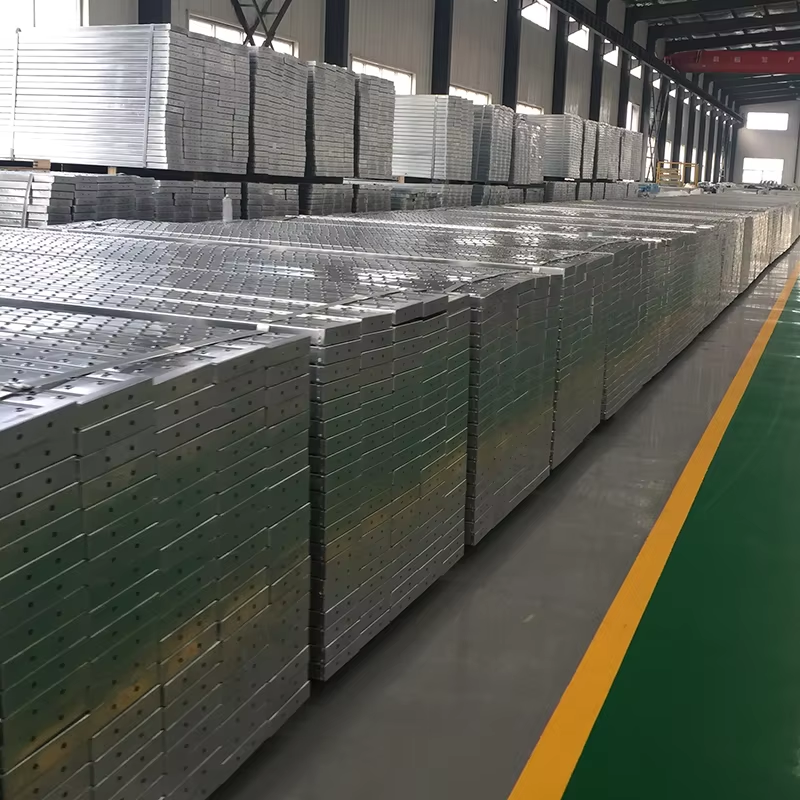

Production Flow
Advantages
1. larger capacity When the scaffolding geometry and structure is compliant with the relevant requirements,
the general single-tube column scaffold bears capacity of up to 15kN ~ 35kN (1.5tf ~ 3.5tf, design value).
2. Easy disassembly, erection and flexible Easy to adjust the length of the tube,
fastener connection is simple,and thus can adapt to all kinds of plane, elevation of buildings and structures with the scaffold.
3.To compare the economy Processing is simple, a relatively low investment costs; if well-designed scaffolding geometry,
focus on improving working capital utilization rate of steel, the material consumption can be achieved better economic results.
Fastening steel frame construction steel per square meter equivalent to about 15 kg.

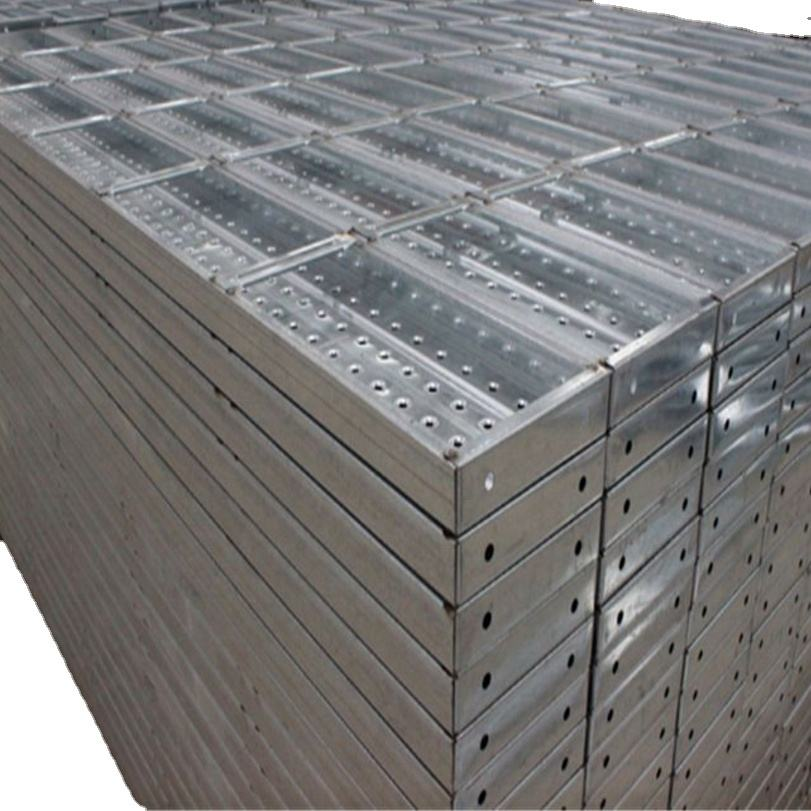

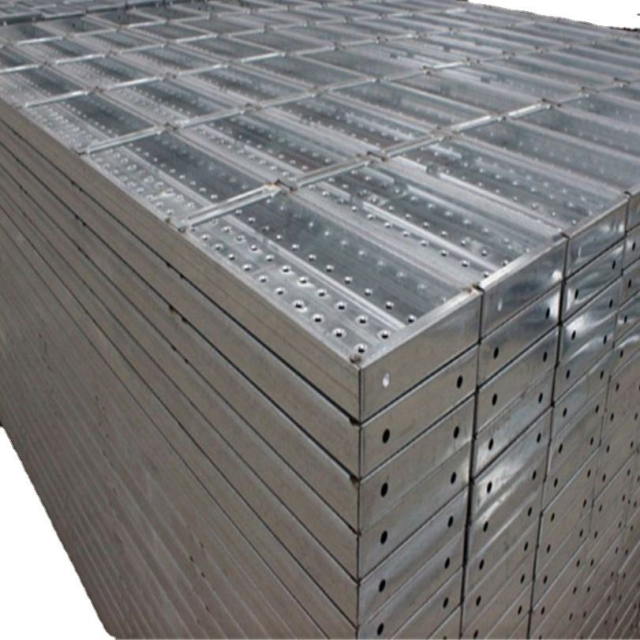

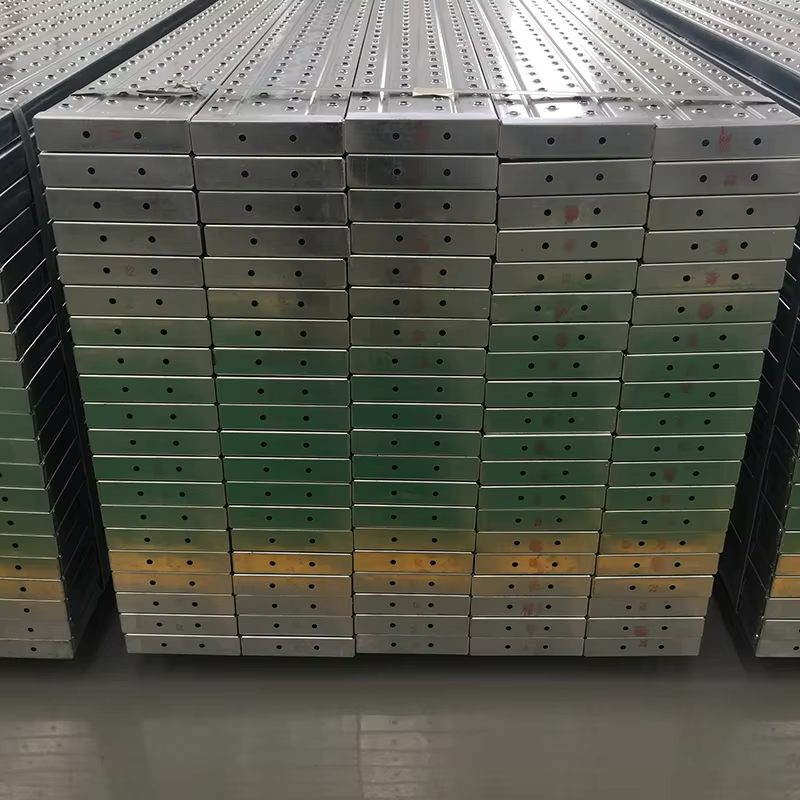

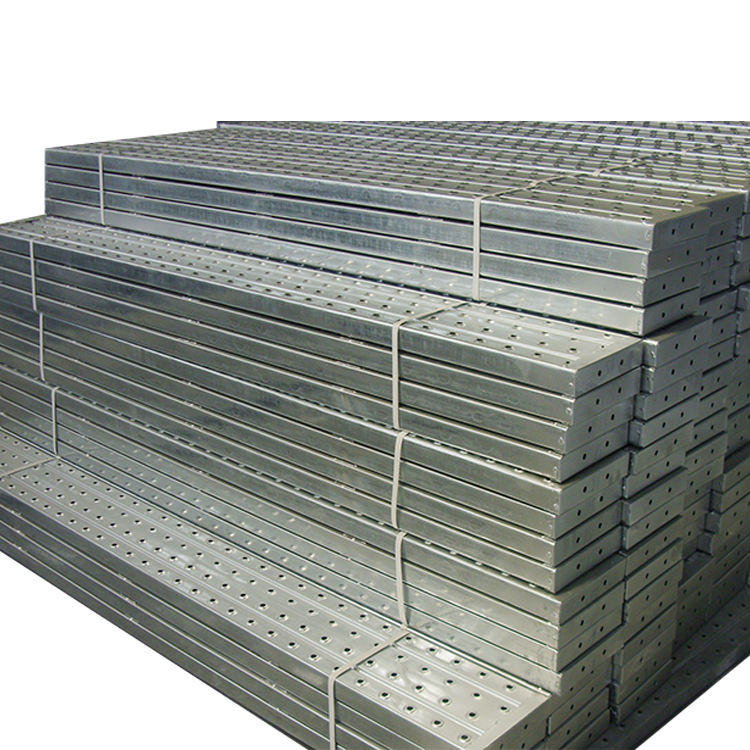

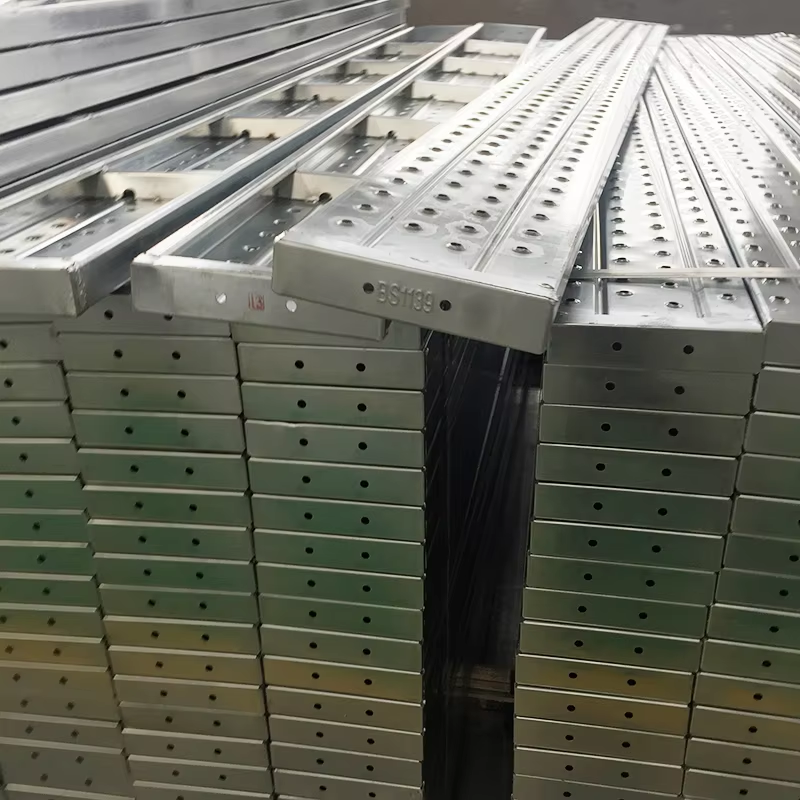

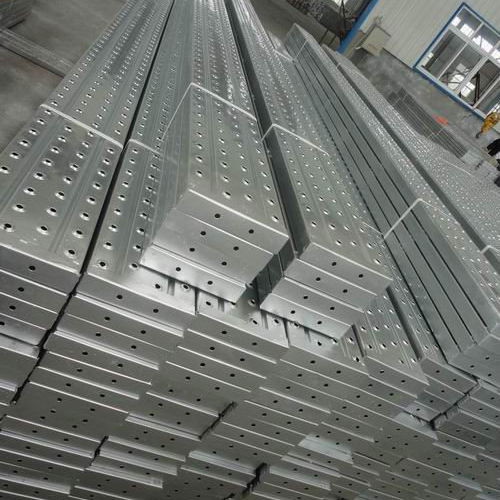

physical object image

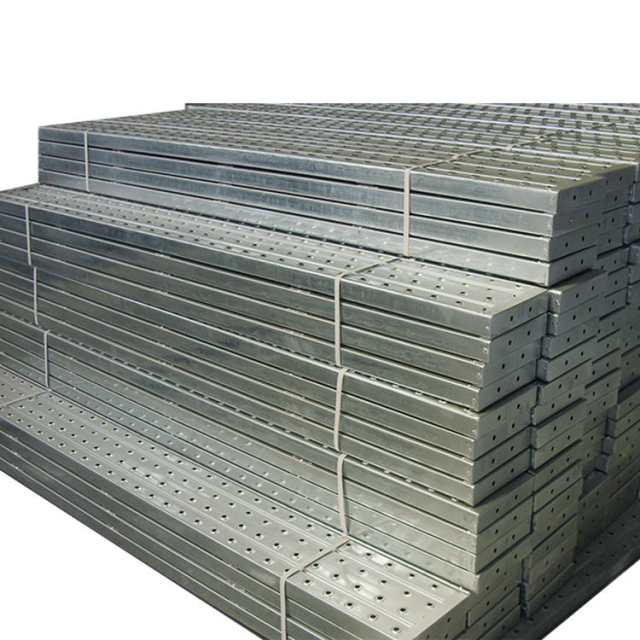

Packaging & Shipping
