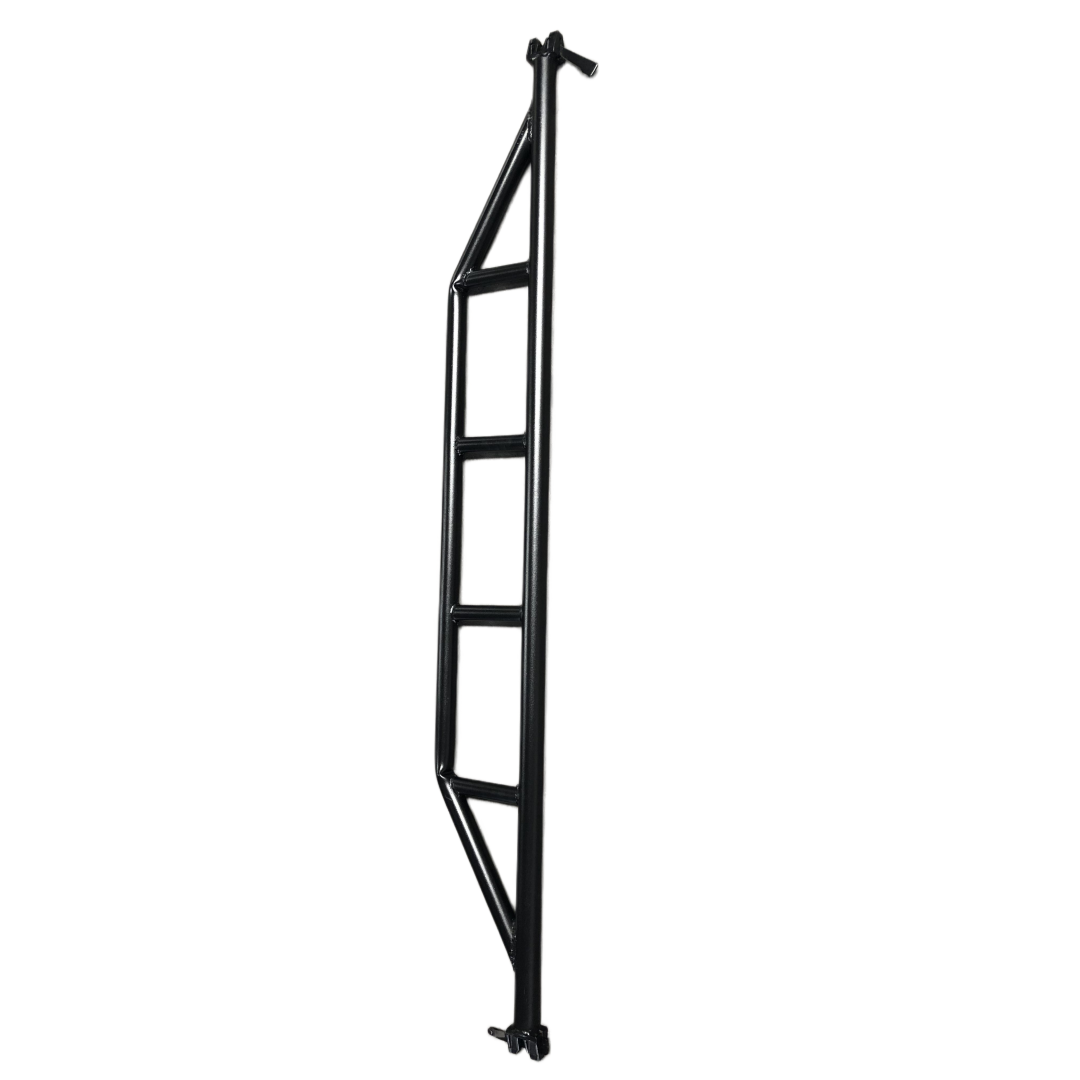

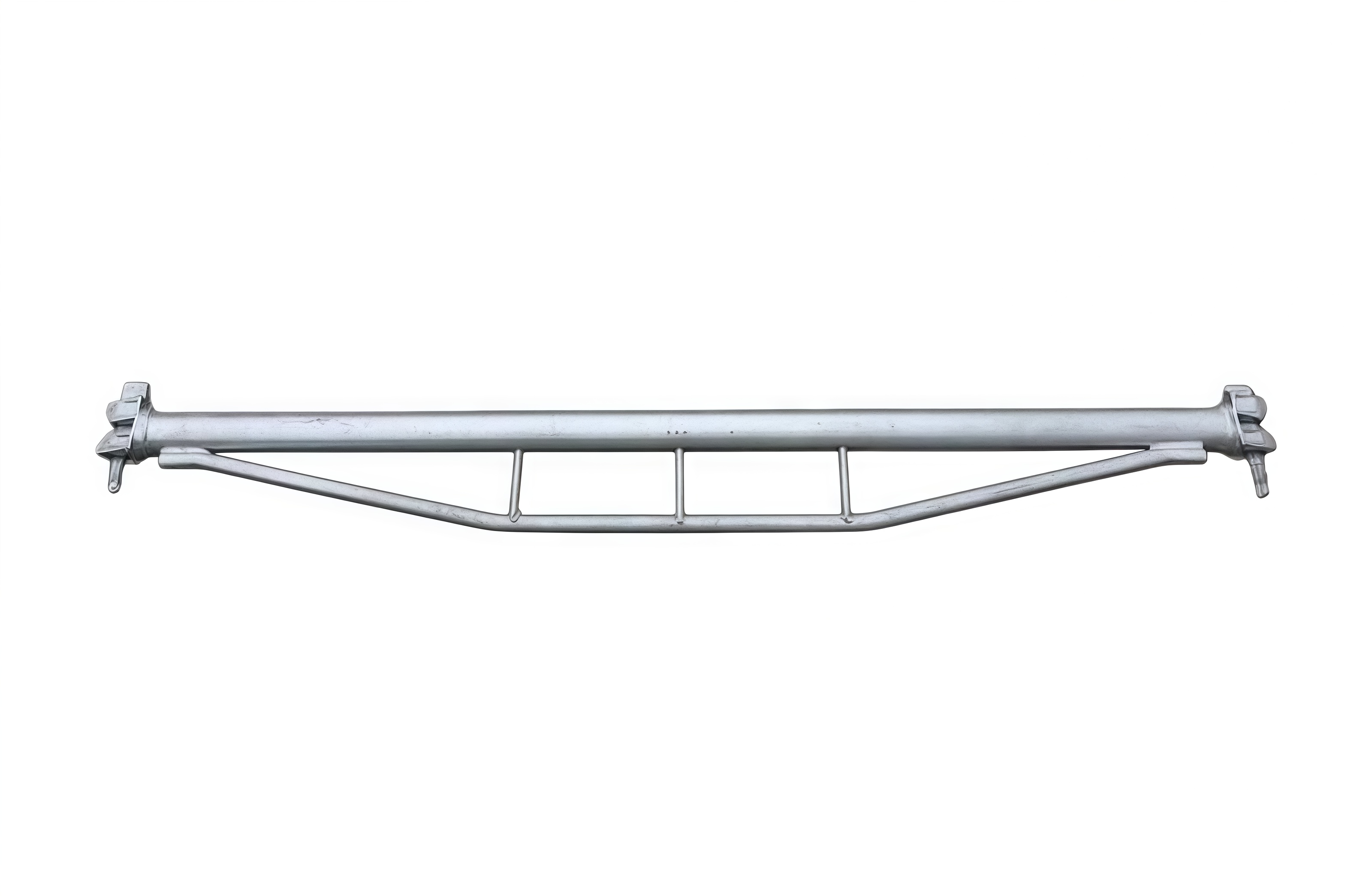

Hot Galvanized Reinforced Bridging Truss Ledger O Type for Multi Connection Modular Quick Ringlock Scaffold
No.ringlock-03

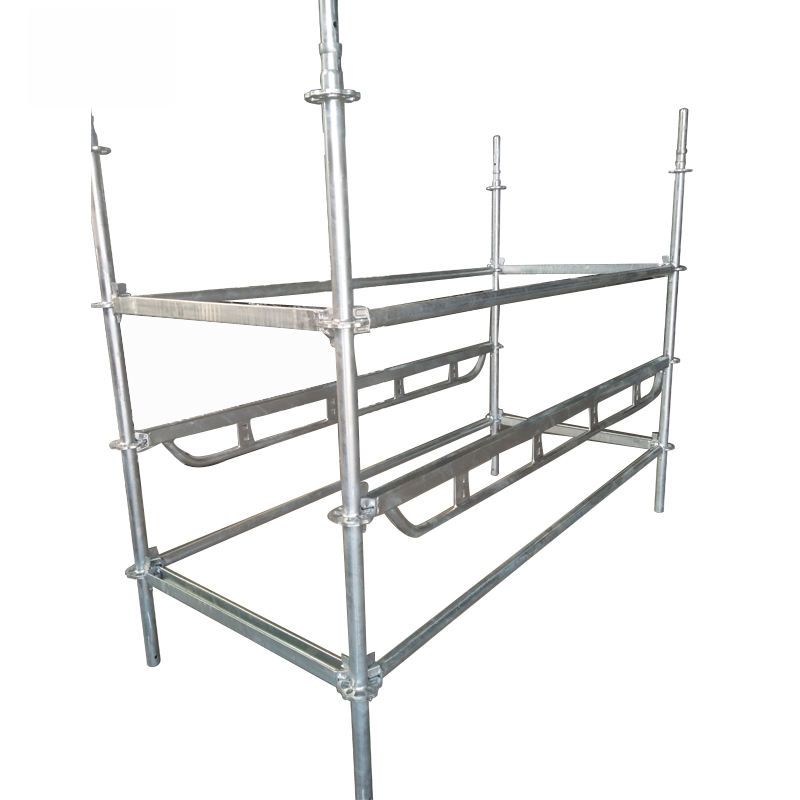

Ringlock scaffolding, also called Modular Scaffolding and Multidirectional Scaffolding. The junction enables quick and easy connection of load bearing items as well as reinforcing parts to each other with an enormous rigidity. Ringlock scaffolding is the new generation product of cuplock sacffolding. The buckle part is a disc which diameter 133mm,and thickness 10mm. Scaffold vertical is a tube of D48*3.5mm which material is Q235/Q345B. On the vertical welded many disc every specific distance ,there is 8 holes on the disc,used to jonit the posts. On the bottom of vertical post is a base collar used to connect the scaffolding and the ground. Ledger is made by a tube with two wedge welded on the ends separately.

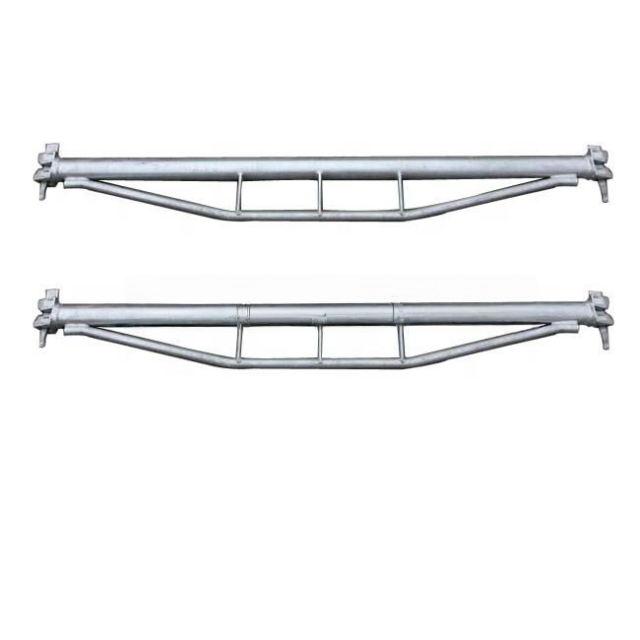

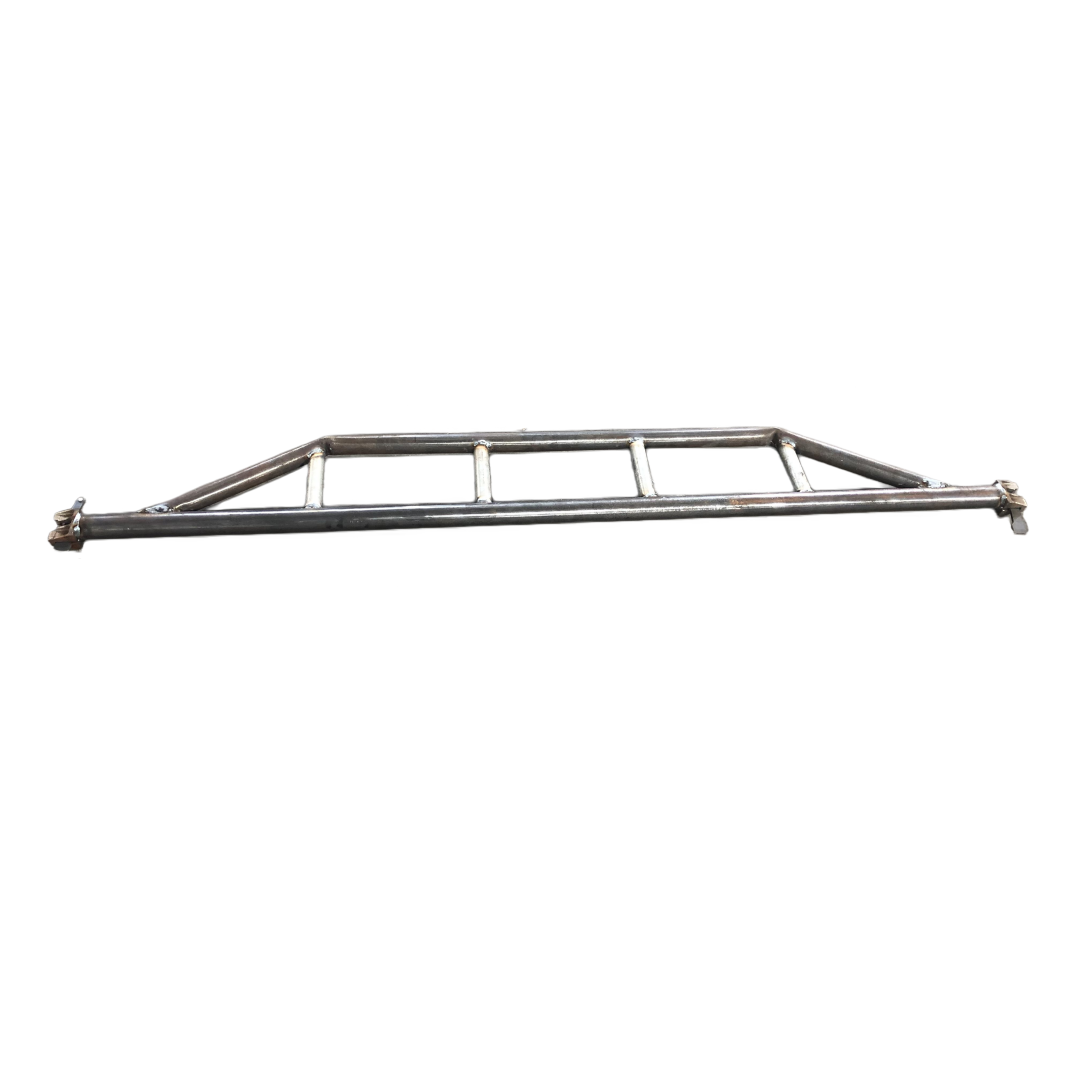

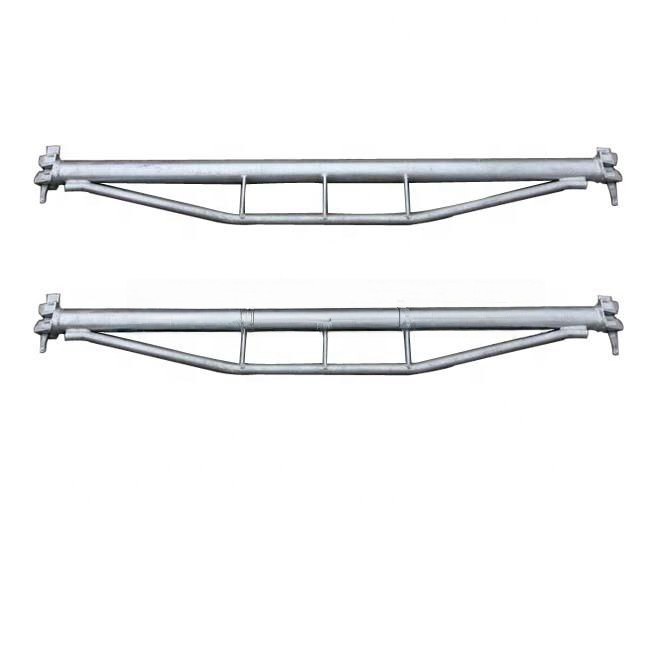

Product Specifications Ringlock Scaffolding Double Ledger / Reinforced Ledger / Truss Ledger Truss ledgers have the same function as the normal ledgers: They are used as horizontals to connect standards, to transfer loads from platforms into standards and for making side protection of the scaffold. Hot Galvanized Reinforced Bridging Truss Ledger O Type for Multi Connection Quick Lock Modular Ringlock Scaffold 1) Material; Q235 2) Surface: Hot Dip Galvaized 3) Standard: AS/NZS 1576.3:1995, EN 12811 4) Scaffolding Component Type: Reinforced Ledger, Scaffolding Reinforced Ledger, Ringlock Reinforced Ledger. Ringlock Scaffolding Reinforced Ledger Specification Table:
Component Name
Size (mm)
Surface Treatment
Unit Weight (kg/pc)
Ringlock Reinforced Ledger
48.3mmx3.2mmx1570mm
Hot Dip Galvanized
18.20
Ringlock Reinforced Ledger
48.3mmx3.2mmx2070mm
Hot Dip Galvanized
15
Ringlock Reinforced Ledger
48.3mmx3.2mmx2570mm
Hot Dip Galvanized
13
Layher Scaffold Truss Ledger
48.3mmx3.2mmx3070mm
Hot Dip Galvanized
10
Product Overviews
Advantages Of Ringlock Scaffolding 1.Versatile flexibility·Due to its modular mechanism, the ringlock scaffolding system is able to adapt to rectangular, circular, angular and circumferential irregular buildings. 2.Quick assembly and disassembly·When assembling, you only need to fix pin in the hole of the vertical pole. When disassembling, knock pin loose with a hammer and then remove the crossbar. 3.Save labor costs·Compared with traditional scaffolding systems, ringlock scaffolding can save more than 50% of assembly labor costs. 4.High load capacity·The ringlock scaffolding system is made of Q235,Q355B high-strength steel. 5.Long lasting·The surface of the ringlock scaffolding components is protected by a galvanized layer, which can have a service life of 10-20 years. 6.Easy to store and transport·Ringlock scaffolding has independent components and is stacked in racks and pallets, eliminating the need for large warehouses and transportation tools.

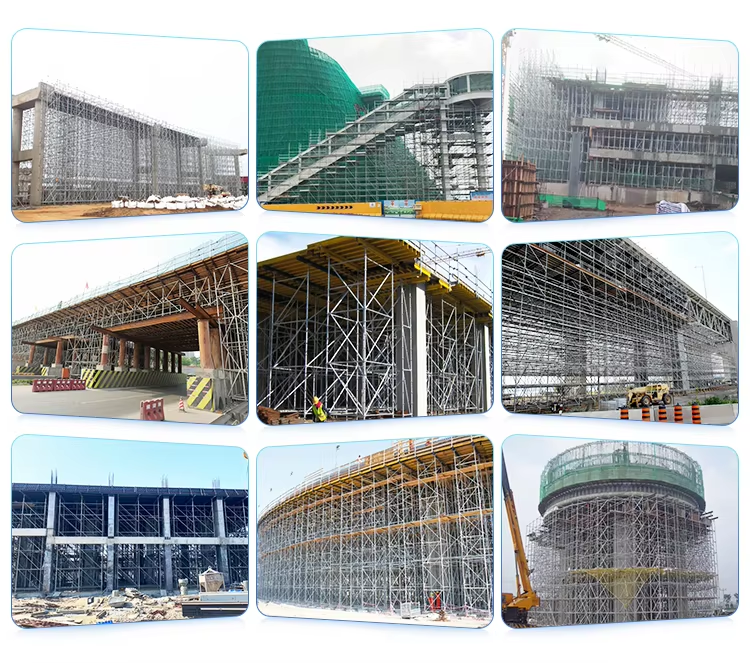

Applications Ringlock system can be used in many construction fields, including residential and non-residential buildings, as well as access and support structures for the industrial, energy, maritime, and leisure and entertainment sectors.
